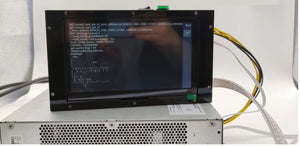

Antminer Hashboard Test Fixture - Touchscreen

Antminer Hashboard Test fixture with touch screen for locating  damaged asic chips and hashrate tests

The Antminer test fixture is suitable for Antminer models:
S9, T9, Z9, Z9mini, S11, S15, T15, S17, T17, S17Pro, T17+, S17+, T17e, S17e, S19, S19Pro, T19, S19j, S19jPro, S19a, L7.

Does not need to be connected to a computer, you only need to connect the test fixture to the hash board and power supply to initiate testing.

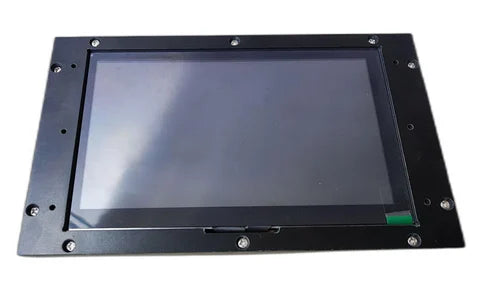

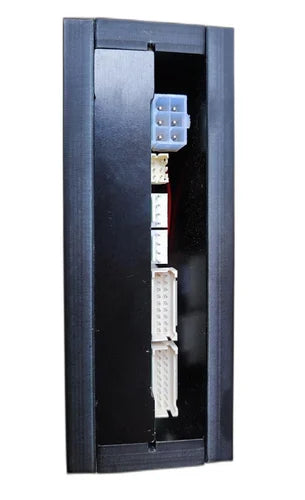

This latest version features a 7-inch full-screen touch screen, also two test sockets on the left side of the fixture, a voltage regulator socket and a DC 12V power connection socket.

when testing the voltage of the Antminer 19 series hash board, the test fixture needs to be turned off after each test, the time of output voltage on the test fixture is 15 seconds. When testing again, a reboot is required.

Specs:

7-inch display screen, the test results are clearly visible;

There is no need to connect a computer during the test

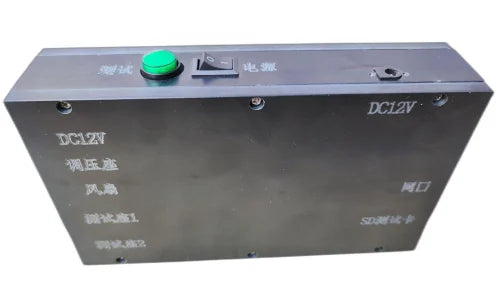

A 12V DC power supply is added to the top of the test fixture.

Notice: testing different Antminer hash boards requires different models of power supplies:

Antminer S15, T15 need to configure APW8 (16V) power supply

Antminer S17, T17, S17 Pro, T17+, S17+, T17e, S17e need to configure APW9 or APW9+ power supply

Antminer S19, S19 Pro, T19, S19j, S19j Pro need to configure APW12 power supply

Antminer S11 needs to be configured with APW8 (10V) power supply

Package Includes:

1pc x Touchscreen test unit
1pc x SD Firmware Card
1pc x 4pin power cable
2pc x Ribbon cable
