Antminer S19pro 110T Water Cooling Conversion Kit
Antminer S19 pro Water Cooling Conversion Kit is suitable for the Antminer S19 pro 110T.
Compared with air-cooled heat dissipation, water-cooled heat dissipation has a better heat dissipation efficiency.
Without increasing power consumption, the heat dissipation rate is maximized, so that the hash boards can be kept in a suitable temperature environment for a long time and prolong the service life of the ASIC.
Provides effective cooling efficiency and temperature control for overclocking projects.
Under the same power consumption, the cooling efficiency can be increased by 35%-40%, helping to overclock users to achieve higher frequencies.
After the miner is changed to water cooling, the high-speed fan are no longer required which greatly reduces noise. The temperature of the hash boards are greatly reduced and the life of the chips can also be extended.
Note: This water cooling kit can only be used on the S19 pro 110T miner; if the hash rate does not match, please consult us for details.
Radiator, fans and pump powered by built in standard 220v C13 input
Should you plan to use standard firmware you will require Fan emulators available here:
4Pin Fan Simulator - 12v
Xilinx Control boards compatible with all custom firmware available here:
Generic Antminer Control board - Xilinx
1x OCOCOO BC5 External Water Cooling Radiator (592x243x358mm)
8x 2200RPM 120mm PWM controlled Fans
1x SC-P90 Water Pump & Reservoir (18w, 4500RMP, 1300L/H)
1x Water filling bottle
1x Water pipe x 3m (16mm OD)
5x G1/4" Fittings
4x Hose Clamps
2x Floor standing feet

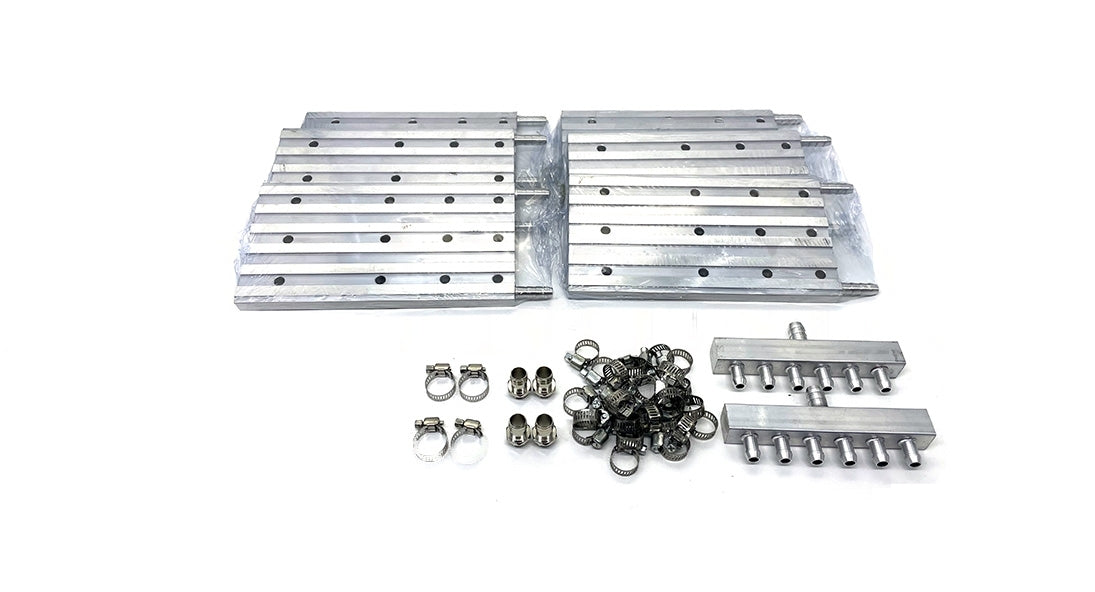

6x Antminer S19 Pro 110T water cooling plates

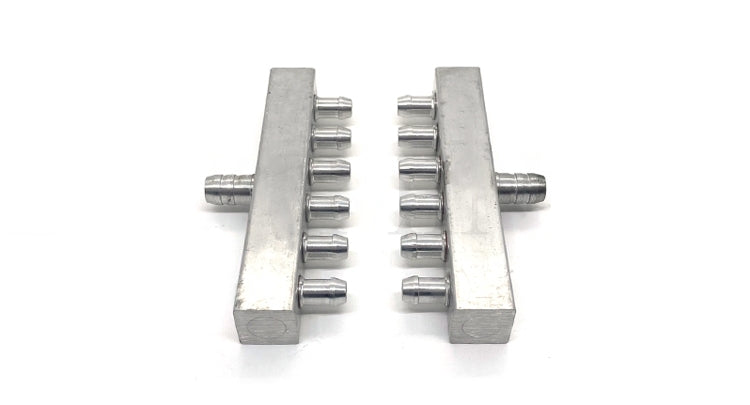

2x Water Separator Manifolds
26x Hose Clamps

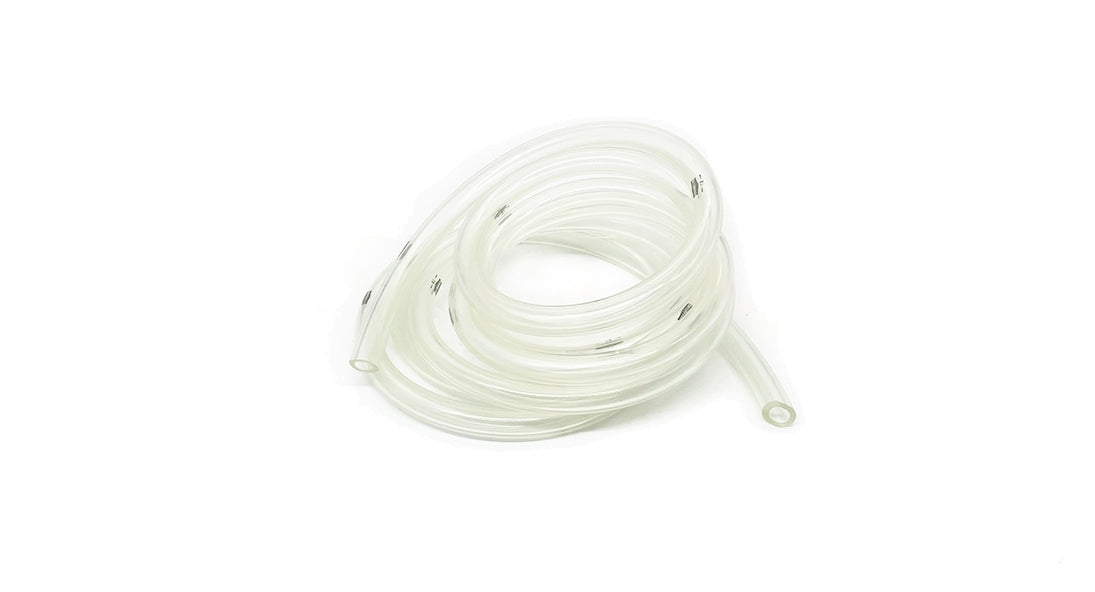

1x Water pipe x 4m (10mm OD)
1x Water pipe x 3m (13.5mm OD)
1x GD900-1 Thermal Grease 30gm
