ASIC Miner Blower Silencer Kit

Blower Silencer for ASIC Miners

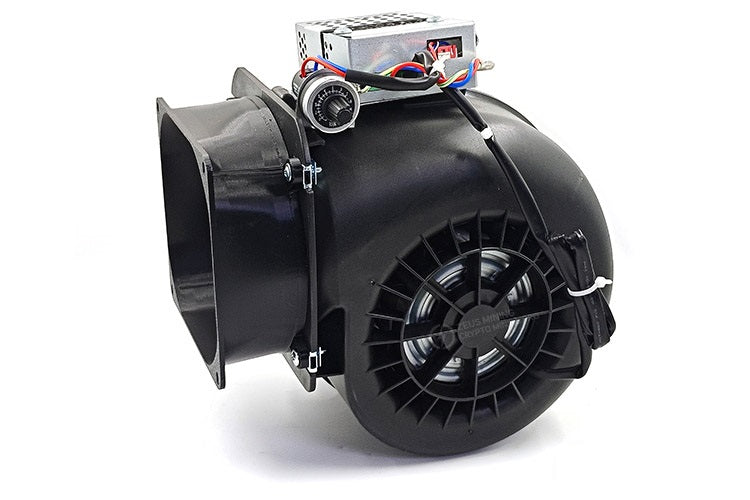

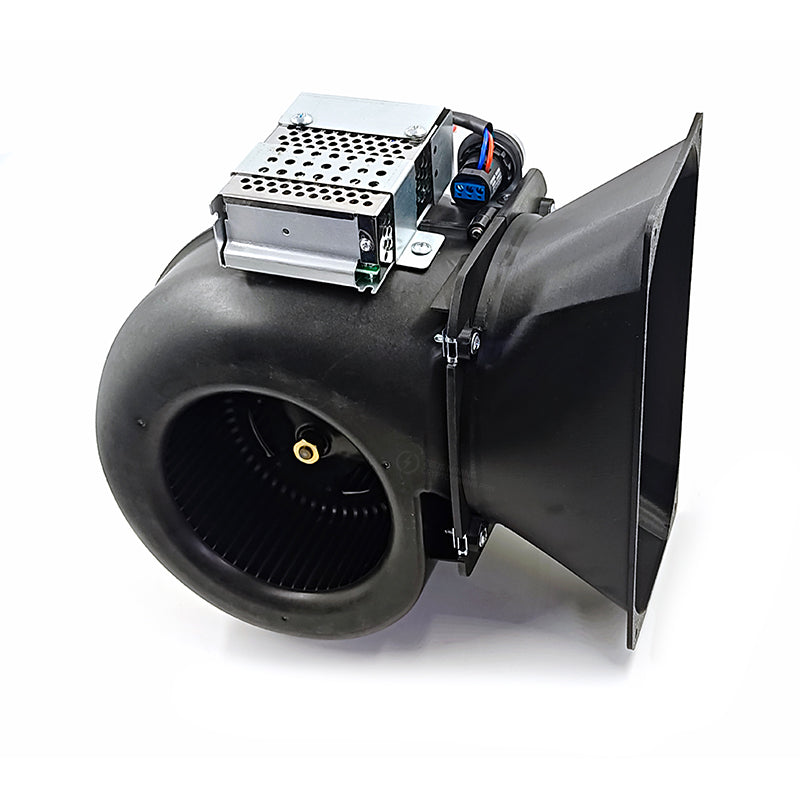

The Blower Silencer is a compact, lightweight noise-management solution designed for use with ASIC miners, including Antminer, Whatsminer, Avalon, and Iceriver models. With its durable engineering-plastic shell, integrated brushless DC motor, and turbine fan structure, it combines stable performance with easier handling. The design features a screw-fixed shroud and a single-outlet air path for efficient airflow and simplified installation.

Key Features

• Durable engineering-plastic shell: glossy black, lightweight, resistant to heat and deformation.
• Brushless DC motor: provides a wide adjustable speed range, long service life, and lower mechanical noise.
• Turbo fan with turbine structure: delivers strong airflow while softening higher-frequency noise signatures.
• Stepless speed controller: a large, easy-to-turn knob for smooth and precise airflow adjustment.
• Safety design: integrated protective shell on the power cord connection meets electrical safety standards.
• Screw-fixed shroud: faster, cleaner mounting—no clamps or tape required.
• Single-outlet design: reduces wind resistance to support higher airflow volume.
• Noise management: tuned to reduce harsh high-frequency mechanical noise, producing a smoother, softer sound profile.

Technical Specifications

• Outlet outer diameter: 150 mm
• Package size: 400 × 300 × 200 mm
• Motor speed: 1800 rpm
• Air speed: ~12 m/s
• Air volume: 1300 m³/h
• Maximum power consumption: 162 W
• Noise level: ~78 dB (varies by environment and miner)
• Weight: approx. 2.55 kg

Compatibility

Supports miners configured with:

• Dual 120 mm fans
• Dual 140 mm fans
• Single 140 mm fan

Note: Requires a fan speed simulator (included) for correct operation when replacing the miner’s original fans.

Please chose model based on miner:

Advantages

• Lighter than traditional silencer boxes (approx. 2.55 kg).
• Compact size reduces shipping costs and makes handling easier.
• Efficient airflow with reduced resistance.
• Improved noise profile at higher frequency ranges.

Important Notes

• Noise levels depend on miner model, environment, and installation method.
• Fan speed simulator required for proper operation.

Installation Instructions

1. Power down your ASIC miner and disconnect it from mains electricity.
2. Remove the original cooling fans from the miner.
3. Install the provided fan speed simulator in place of the removed fans to ensure the miner recognizes normal fan operation.
4. Position the Blower Silencer.
5. Secure the blower using the screw-fixed shroud — no clamps or tape required.
6. Connect the blower’s power cable to a suitable power source.
7. Use the large control knob to adjust airflow speed to the desired setting.
8. Check airflow through the outlet.
9. Power the miner back on and confirm stable operation.

Installation typically takes around 5 minutes.

Kit Includes:
1x Blower Fan
1x Shroud (miner model specific)
2x Fan simulator (miner model specific)
