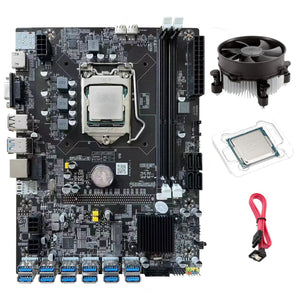

B75-BTC-12U, 12 x PCIE over USB + Intel Celeron G Combo
B75-BTC-12U, 12 x PCIE Over USB Crypto Mining Motherboard + Intel Celeron G Combo
Motherboard Specifications:
- Intel B75 Chipset
- Supports Intel Celeron/Pentium/Core i3/i5/i7 2nd+3rd Generation Ivy Bridge/Sandy Bridge
- Can be powered with:
-
Standard ATX power supply (24pin + 8Pin power)
- Server power supply (2x pcie 6pin power) (No 24pin or CPU 8Pin required)
Power options:
- Standard ATX PSU via 24pin and 8pin power (3x yellow jumpers in position 2-3 (default))
Or - Server PSU via 2x onboard PCIe 6pin power (3x yellow jumpers in position 1-2)
- Network: 10/100/1000Mbit Ethernet
- External Ports:
- 2x USB 2.0
- 2x USB 3.0
- Gigabit LAN
- HDMI
- VGA
- Memory 2x DDR3 Desktop Ram (Available Here)
- 4x SATA
- 1x MSATA
- Form-Factor: Micro-ATX (23cm x 17cm)
- 12 x PCI-E x1 Over USB3.0 Headers
Used Intel Celeron G CPU (pre-installed) + New CPU cooler
Combo consists of:
1x B75-BTC-12U, 12 x PCIE over USB Mining Motherboard
1x SATA Data Cable
1x Motherboard Box
1x Used Intel Celeron G CPU + New CPU cooler
