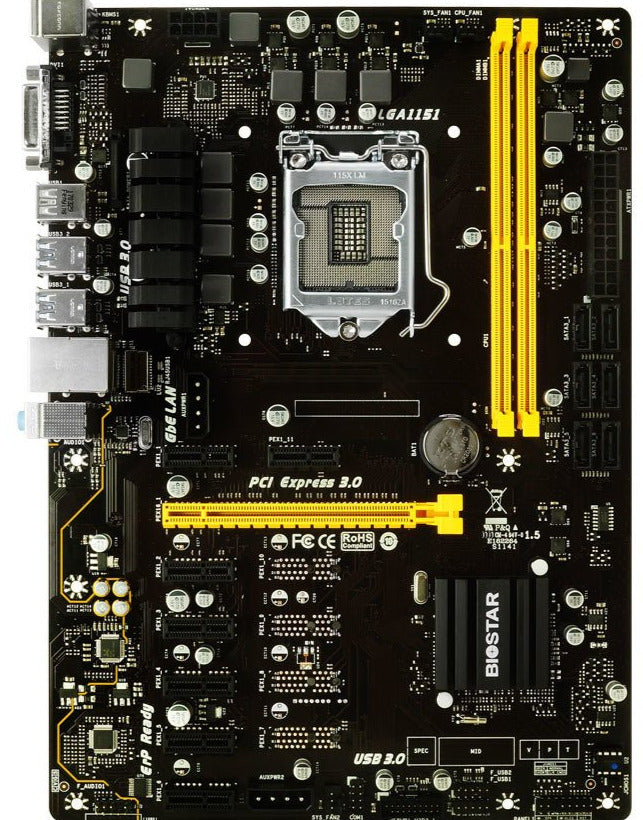

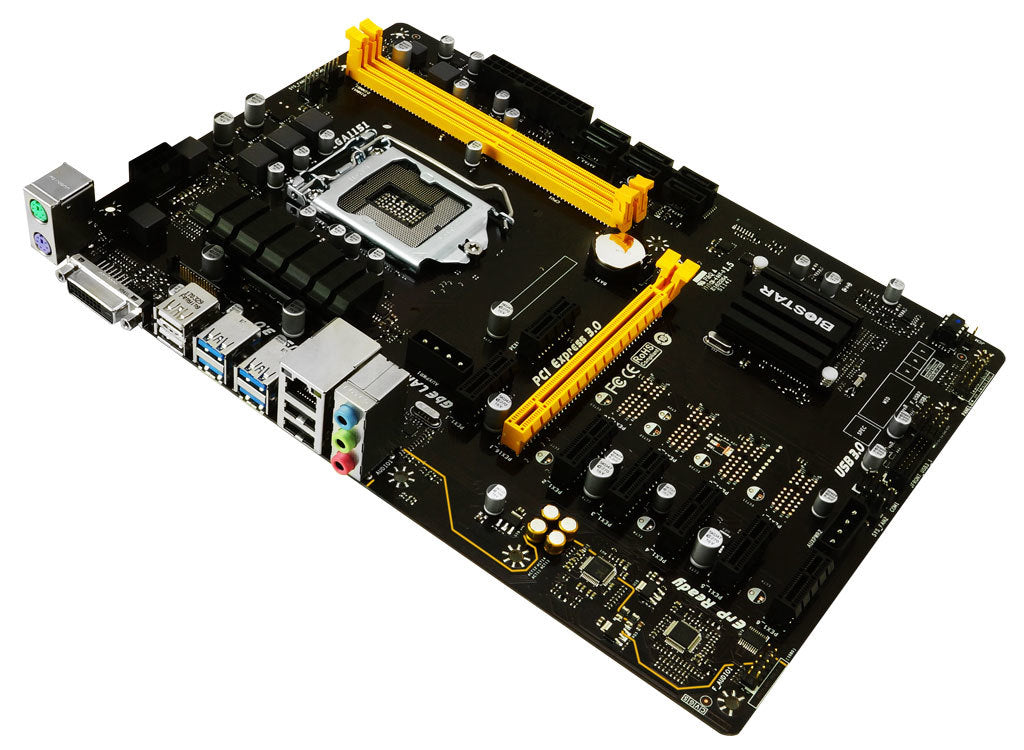

Biostar 8 x PCIe TB250-BTC+ Mining Motherboard
| Chipset | Intel B250 |
| CPU SUPPORT |
7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor |
| MEMORY | Support Dual Channel DDR4 2400/ 2133/ 1866 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory * DDR4 2400 for 7th Generation Intel® Core™ Processor Family |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 6 x SATA III Connector |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio Support HD Audio |
| USB | 4 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A) 2 x USB 2.0 Header |
| EXPANSION SLOT |
1 x PCI-E 3.0 x16 Slot 7 x PCI-E 3.0 x1 Slot |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A) 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.0 Header 2 x USB 2.0 Header 6 x SATA III Connector (6Gb/s) 1 x SATA Power Connector(for rear USB power enhancement) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.) 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 29.5cm x 21cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(x64) for Intel 7th Generation Processor ※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor |
| BUNDLE SOFTWARE | BullGuard Smart Speed LAN(Windows 7/ 8.1 only) Intel Rapid Storage Technology |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
