CHIX Server PSU SATA Breakout Board

  • R 2,199.00
    Unit price per

In Stock With HashRate


Product Description

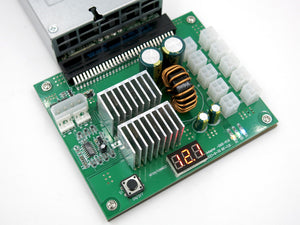

CHIX Breakout Board, 10x 4-Pin to SATA 5V/12V HDD/SSD SATA Power

Power up to 40 Drives for Mining

Introducing the first breakout board designed specifically for hard drive mining providing SATA power for all of your HDD/SSD needs.  The CHIX breakout board is compatible with HP 750w and 1200w server power supplies.

  1. Standalone
  2. Couple with an ATX power supply for GPU mining with Sync ON/OFF

BREAKOUT BOARD SPECIFICATIONS:

  • Electronic on /off switch. Retains its state
  • 10x 4-pin ports for power
  • LED indicator lights: Yellow (receiving power), Green (pushing 12v power) and Blue(pushing 5v power)
  • On-board LED voltmeter display for 12v
  • Protective bottom plate
  • Chain Sync Feature through X11 AMP and ZSX AMP Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on. Feature tested with up to 20 PSU in a Daisy Chain.

PACKAGE CONTENTS:



**Server Power Supply Not included; used in images for reference only**

**1200W Server Power supply available here**

Power Supply Compatibility List

  • Note: Not compatible with Dell power supply with Dell Part Numbers: TCVRR, 0GVHPX, or 0XCHHD.
  • 460 Watts:
    • DPS-460EB A, HSTNS-PD14, HSTNS-PL14, 499249-001, 499250-101, 499250-201, 511777-001, 503296-B21, HSTNS-PL23B, PS-2461-6C1-LF, 591553-001, 591555-201, 599381-001, DPS-460MB A, HSTNS-PL28, PS-2461-7C-LF, 643931-001, 643954-201, 660184-001, 656362-B21, HSTNS-PR28-AD, HSTNS-PL28-AD, 7001613-J100, 746071-001, 748279-201, 748279-301, 742515-001, 739252-B21
  • 750 Watts:
    • DPS-750RB-A, HSTNS-PL18, 506821-001, 506822-201, 511778-001, 512327-B21, DPS-750RB-A, HSTNS-PD18, 506822-101, 506821-001, 511778-001, 512327-B21, HSTNS-PL12, 449838-001, 449840-001, 454353-001, DPS-750AB-4 A, HSTNS-PD31, 674890-001, 666375-101, 674275-B21, DPS-750UB B, HSTNS-PD22B, 591556-101, 591554-001, 599383-001, 593831-B21, DPS-750AB-3 A, HSTNS-PD29, 643932-001, 643955-101, 660183-001, 656363-B21, HSTNS-PL29-AD, PS-2751-7CB-LF, 746072-001, 748281-201, 742516-001, 739254-B21, HSTNS-PF04, HPM-S-0750DDL00, 619671-401, 639173-001, 636673-B21, HSTNS-PL34, PS-2751-9C-LF, 697579-001, 700287-001, 697554-201, 697581-B21
  • 1100 Watts:
    • 03MJJP, 0Y613G, 01Y45R, L1100A-S0, PS-2112-2D-LF, PS-2112-2D1-LF, 09PG9X, 0W933G, PS-2112-2L, 0XVKF0, PS-2112-2L LF, 09K3M9
  • 1200 Watts:
    • DPS-1200LB C, MVKTR-LF, DPS-1200FB A, HSTNS-PD11, 440785-001, 438202-001, 438202-002, HSTNS-PL30, 643933-001, DPS-1200FB-1 A, HSTNS-PD19, 570451-001, 570451-101, 579229-001, DPS-1200SB A, HSTNS-PD30, 643933-001, 643956-101, 660185-001, 643956-201, 656364-B21
  • 1400 Watts:
    • PS-2142-2L, PS-2142-2L LF, 0Y53VG, DPS-1200MB A, D1200E-S0, 0MYV71, 04V04J, DPS-1200MB-1 A, D1200E-S1, 0RN0HH, 0CN35N, DPS-1200MB-1 B, D1200E-S2, 0J8HPV, 0FRVCP, DPS-1200MB-1 C
