Effortless Deployment and Independence•Streamlined design that eliminates the need for secondary heat exchange methods, relying solely on oil
circulation.

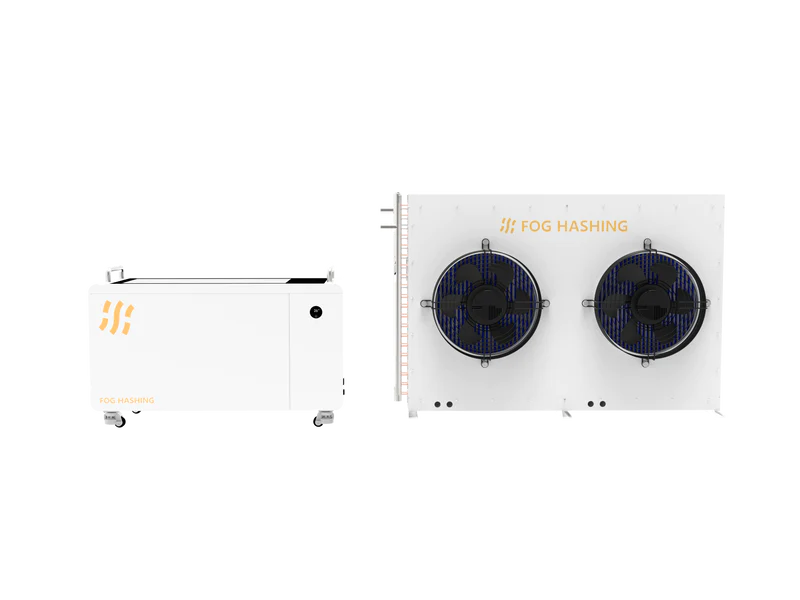

•A convenient all-in-one configuration, combining a single tank with a dry cooler, requiring only the installation of tubing and wiring.
Advanced Cooling Capabilities
•Exceptional cooling performance: 21kW@38℃, 24kW@35℃, and 28kW@33℃.
•Incorporates a standard water mist for enhanced heat dissipation, maintaining efficiency even in environments as hot as 42℃
Intelligent, Self- Adjusting Operation•Equipped with built-in EC motors that automatically adapt fan speed in response to changes in ambient temperature, ensuring optimal energy efficiency.

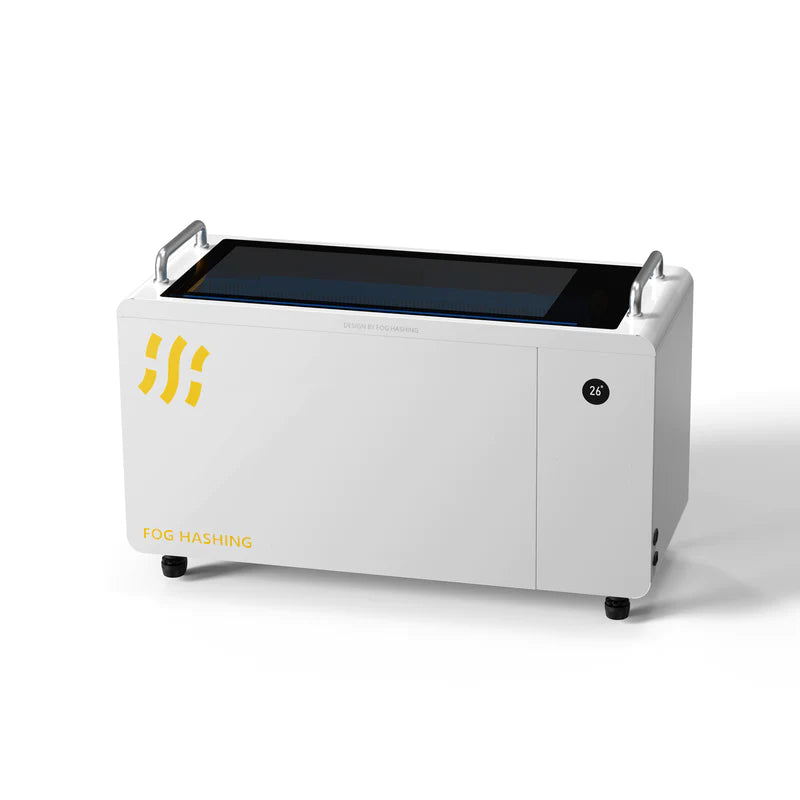

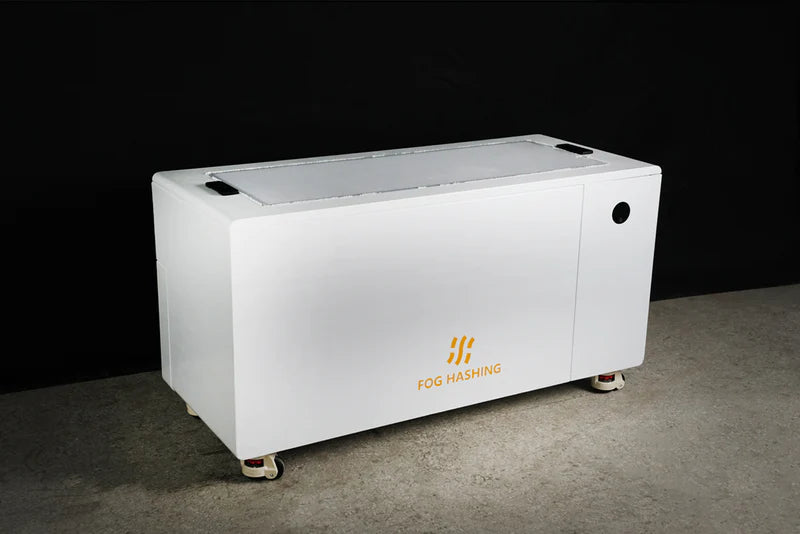

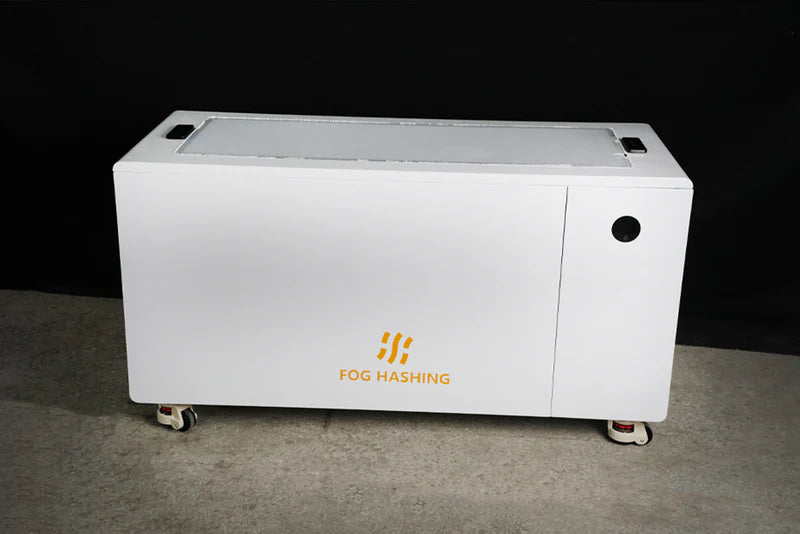

C6 TANK
Technical Specifications
| Outer Size |
1185(L)*530(W)*760(H)mm |
|
|
| Inner Size |
912(L)*404(W)*355(H)mm |
|
|
| G.W |
125kg |
|
|
| Coolant Volume |
200L |
|
|
| Cycle Mode |
Single Loop |
|
|
| Input Voltage |
Single-Phase |
|
200-240V 50/60Hz |
|
|
| Power Usage |
850W(220V 50Hz) |
|
|
| Noise |
45dB(A)@10m |
|
|
| Flow |
90L/min |
|
|
| Qty of Miner(s) |
6*S19/S21 |
|
8*M50/M60 |
|
|
| Electrical Interface |
C14*1 |
|
|
| PDU |
Single-phase: 220V 125A 6C19 |
|
Three-phase: 380V 63A 6C19 |

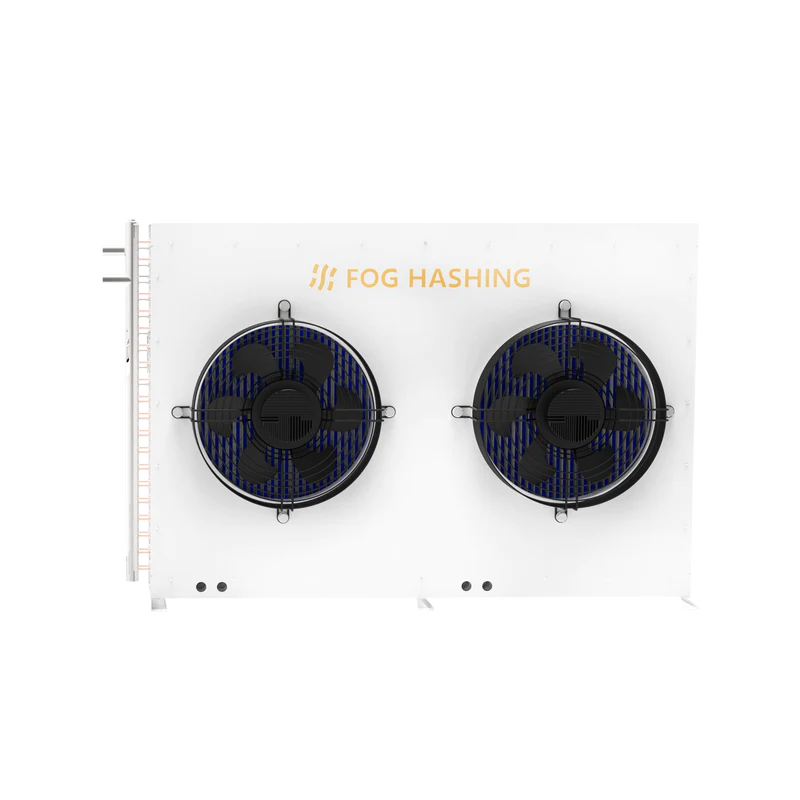

C6 Dry Cooler
Technical Specifications
| Outer Size |
1680(L)*400(W)*1015(H)mm |
|
|
| Input Voltage |
Single-Phase 200-240V 50/60Hz |
|
|
| Power Usage |
10-1400W(220V 50Hz) |
|
|
| G.W. |
172kg |
|
|
| Cooling Capacity |
24kW@35℃ |
|
|
| Fluid In / Out |
63-53℃ |
|
|
| Electrical Interface |
C14 *1 |
|
|
| Fan Type |
EC Fan |
|
|
| Noise |
65dB(A)@10m (MAX) |
Accessories
Product specification
| Pipeline |
5m |
|
|
| Gasket |
8pcs |
|
|
| Oil pump and adapter |
1set |
|
|
| Handle |
12pcs |
