Goldshell Byte
Includes power adapter
Description

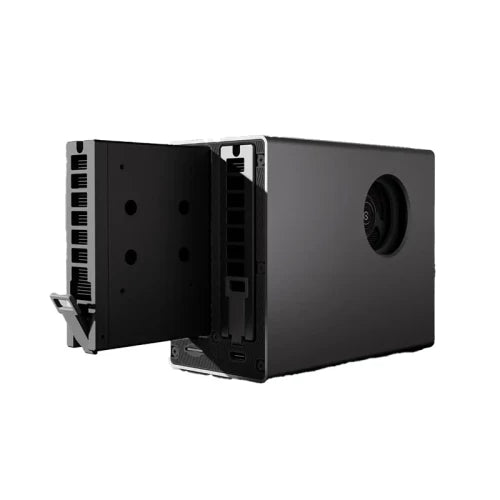

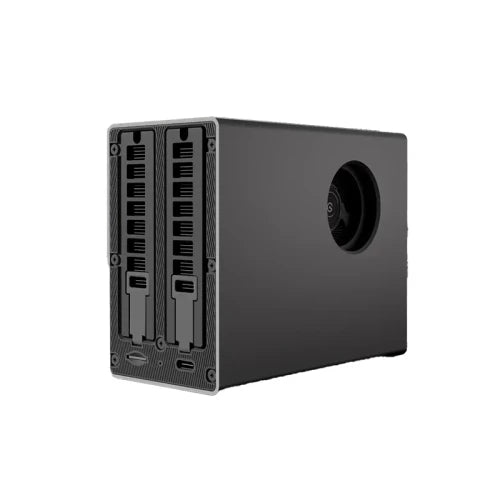

Goldshell Byte is an ASIC miner designed to accommodate 2x hashcards currently available in 2 algorithms (zkSNARK, Scrypt), specifically targeting ALEO and DOGE.
Hashcards deliver a maximum hashrate of:
DG Card - Scrypt: 80Mh/s @ 65W - 0.81J/Mh ~5%
AE Card - zkSNARK: 5.5Mh/s @ 65W - 11.82J/Mh ~5%
Specifications
Goldshell BYTE |
|
| Connection Port ： | Wi-Fi |
|
Miner Dimensions:
|
135*63*106mm |
| Miner Weight： | 0.4kg |
| Package Dimensions： | 184*156*107mm |
| Package Weight： | 0.731kg |
| Relative Humidity： | ≤65% |
| Sound: | 45 dB, Average Home Noise |
| Temperature： | 0~35℃ |
Goldshell Wall Charger |
|
| Charger Dimensions： | 68*30*80mm |
| Charger Weight： | 0.382kg |
| Input Voltage： | 140W |
|
Input：
|
100-240V 2.5A（MAX） |
| Output： | 5V-3A 9V-3A 12V-3A 15V-3A 20V-7A |
| Package Dimensions： | 220*156*63mm |
| Package Weight： | 0.629kg |
AE CARD |
|
| Card Dimensions： | 123*21*88mm |
| Card Weight： | 0.325kg |
| Default Mode Hashrate： | 4.5MH/s±5% |
| Default Mode Power Consumption： | 10J/MH |
| Default Mode Power： | 45W±5% |
| Fan Specifications： | 5500 rpm |
|
High-Power Mode Hashrate：
|
5.5MH/s±5% |
| High-Power Mode Power Consumption： | 11.82J/MH |
| High-Power Mode Power： | 65W±5% |
| Package Dimensions： | 184*156*56mm |
| Package Weight： | 0.527kg |
DG CARD |
|
| Card Dimensions： | 123*21*88mm |
| Card Weight： | 0.325kg |
| Default Mode Hashrate： | 65MH/s±5% |
| Default Mode Power Consumption： | 0.69J/MH |
| Default Mode Power： | 45W±5% |
| Fan Specifications： | 5500 rpm |
|
High-Power Mode Hashrate.co.za：
|
80MH/s±5% |
| High-Power Mode Power Consumption： | 0.81J/MH |
| High-Power Mode Power： | 65W±5% |
| Package Dimensions： | 184*156*56mm |
| Package Weight： | 0.527kg |
