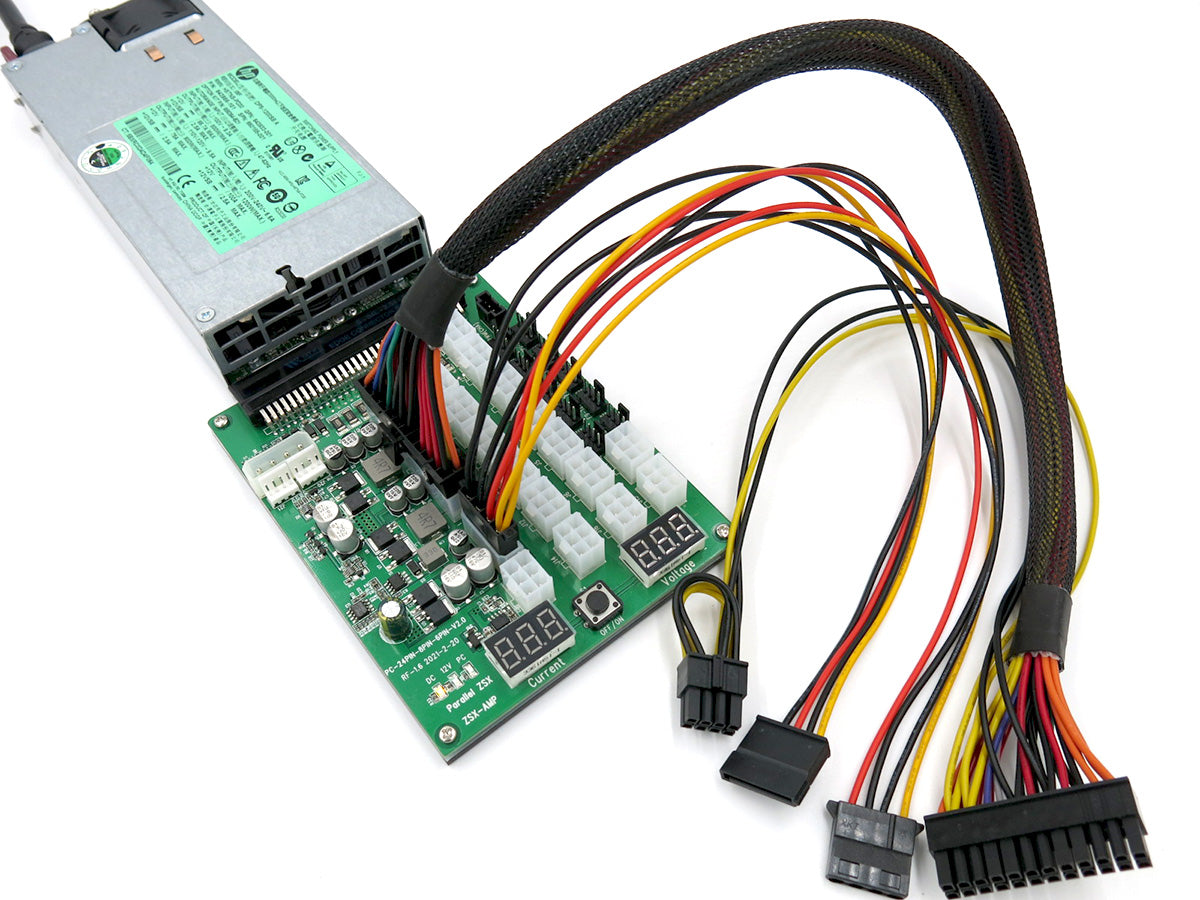

HP 1200W Server PSU + ZSX AMP Breakout Board KIT
GPU Mining All-In-One 16 Port Chain Sync Breakout Board for HP, DELTA, LITE-ON Server Power Supplies
The ZSX-AMP is the first of its kind to include a full ATX PICO 24pin connector to directly power your Motherboard, CPU Power, and an HDD or SSD. Additionally, it features a built-in Fan HUB to power up to 10 Fans. The AMP version displays the total DC amperage as well as Voltage. Users now have the ability to know their DC watts output. The ZSX is truly the single board for 100% GPU mining rigs.
- Standalone combining three specific components into one: ATX 24pin power connector, PCIe power Breakout Board, and Fan Hubs
- Optional XRMT-V1 remote management add-on module is available. While these boards are interconnected, use the remote power management module to remotely manage ON-OFF / Schedule Restart.
- Includes 4-pin PWM cable to allow your motherboard to regulate PWM fan speeds accordingly to current temperatures detected, instead of the connected fans running constantly at 100% speed.
- Live Amp reading directly on the ZSX / Minimum 20amps (12v) for accuracy
- 24Pin ATX Connectors W/ 24in Cable
- 180watts limit on wattage draw from the 24pins ATX connectors
- 4Pin Molex Female
- SATA Power for your SSD
- 4Pin/8pin CPU Power
Breakout Board Specifications:
- PWM can control fans RPM via motherboard when connected to the Chassis fan motherboard header
- Support up to 200Amp / 2400Watts
- Electronic on /off switch. Retains its state
- 16 PCIe ports, for 6pin connectors (16x 100cm 16AWG 6pin to 6+2pin cables included)
- LED indicator lights: Yellow (receiving power), Green (delivering power) & Blue (Motherboard powered)

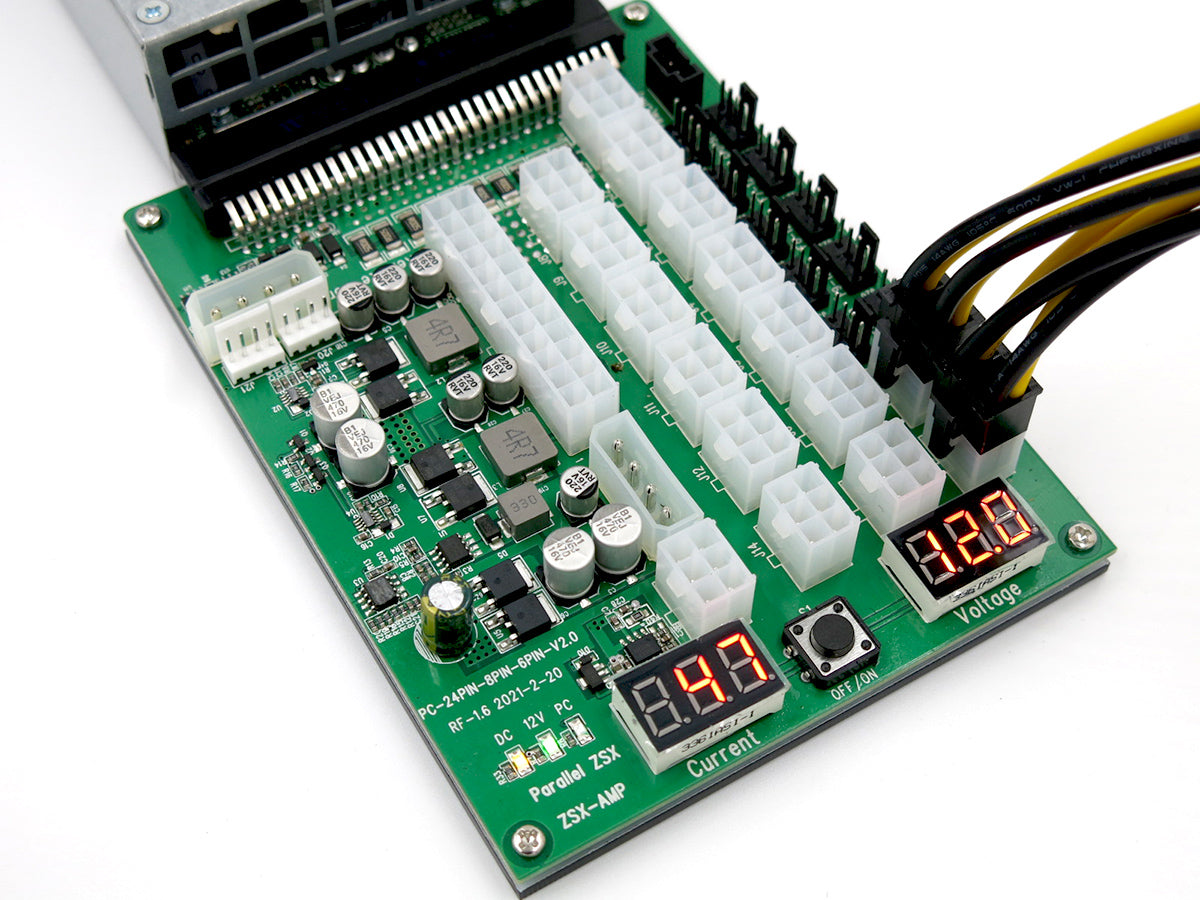

- On-board LED voltmeter and current displays! Current x Voltage = Watts
- Please note this is most accurate on loads over 500W
- Protective bottom plate
- Chain Sync Feature through ZSX Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on. Feature tested with up to 20 ZSX Breakout boards in a Daisy Chain.

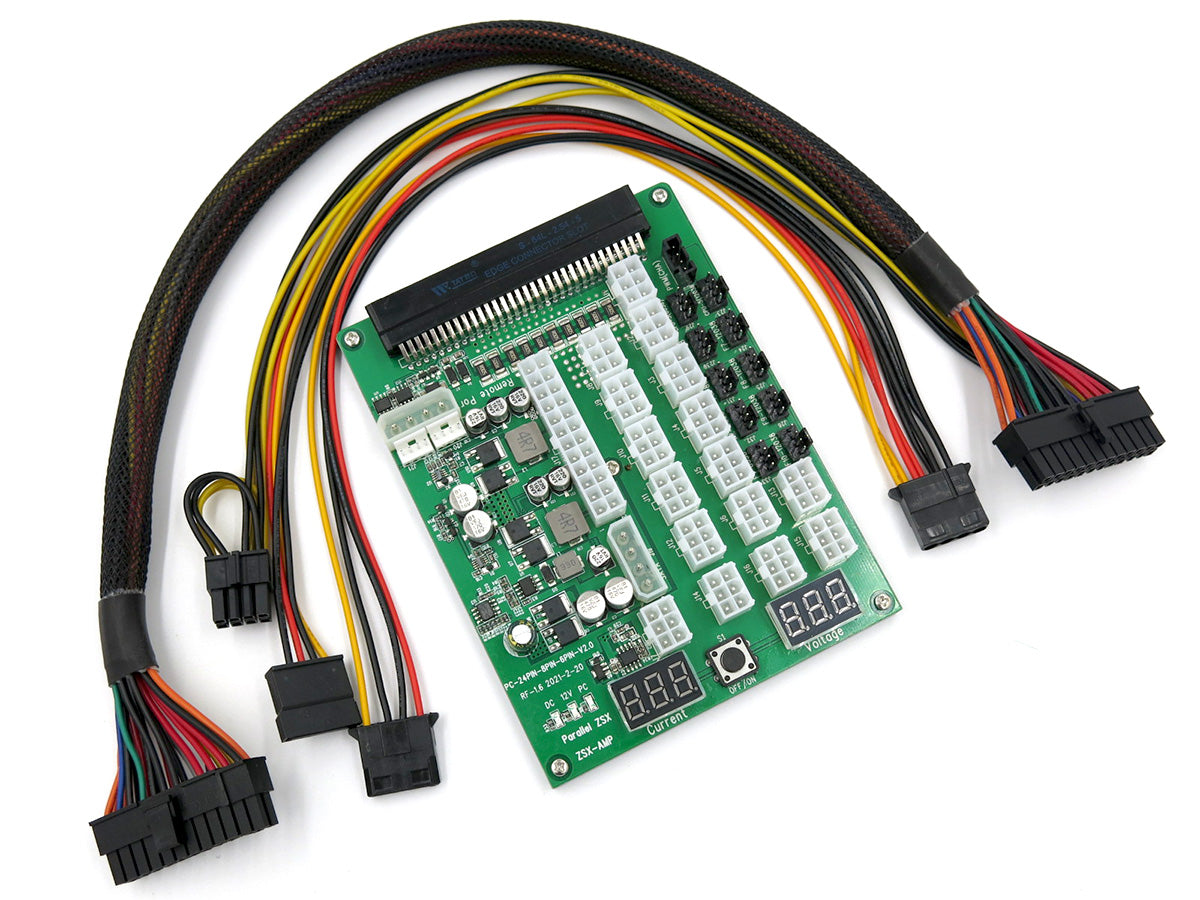

- (1) ZSX-AMP Breakout Board

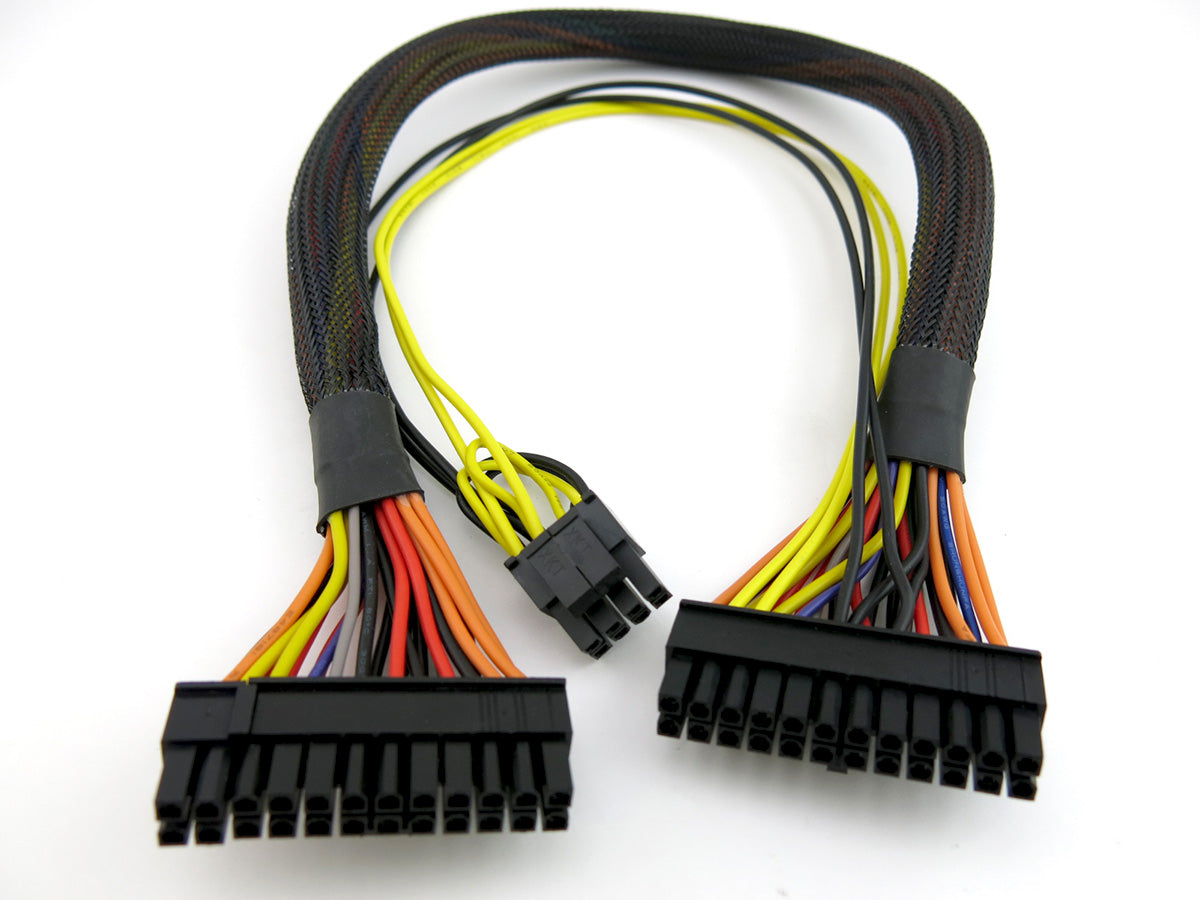

- (1) 24pin to 24pin ATX cable, length: +-50cm
- (1) 4Pin/8pin CPU Power, length: +-40cm

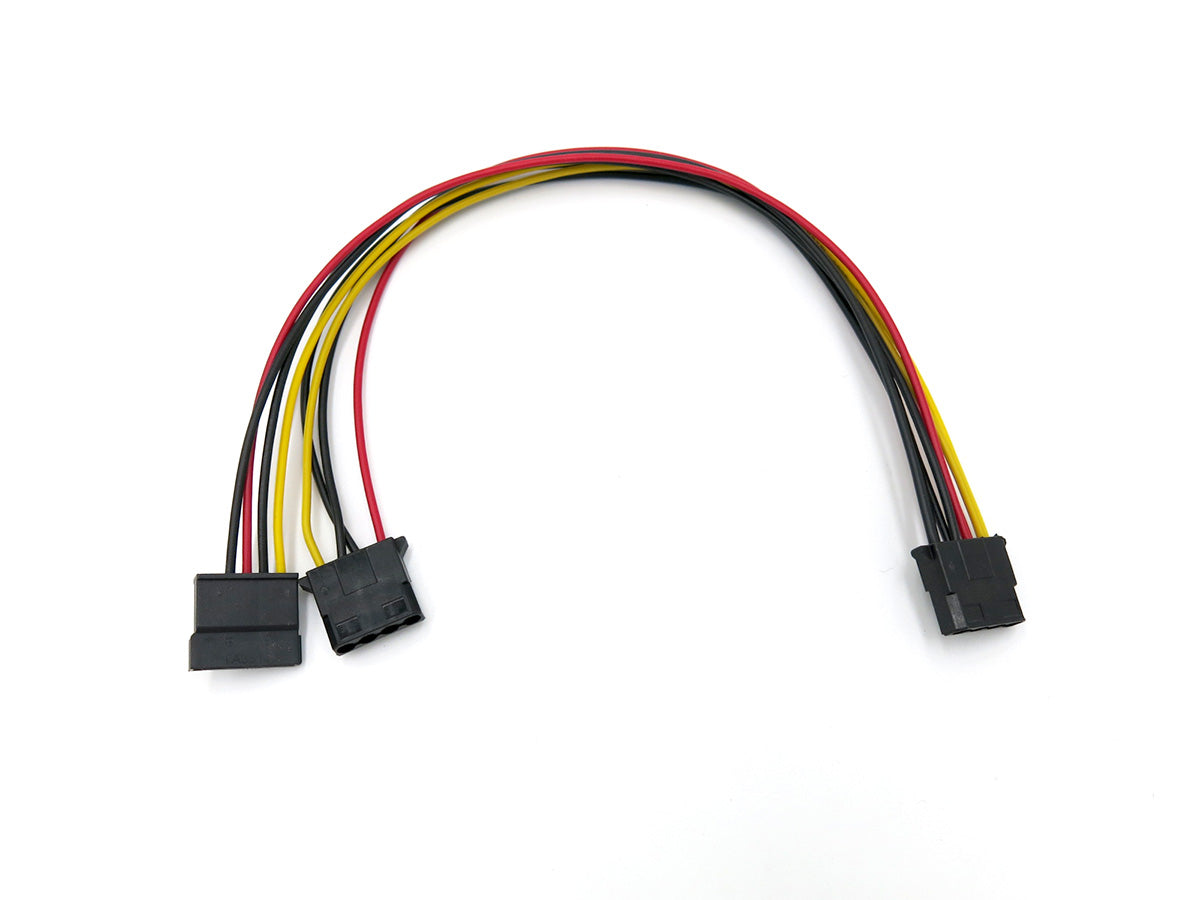

- (1) 4Pin Molex Female / SATA Power cable +-40cm
- (1) 4-Pin PWM Breakout Board to Motherboard Chassis fan header cable +-60cm
- (10) 4-Pin Female to 4-Pin male fan extension cable +-50cm
- (16) Heavy Duty 16AWG 6pin to 6+2Pin PCIe power cable +-100cm
