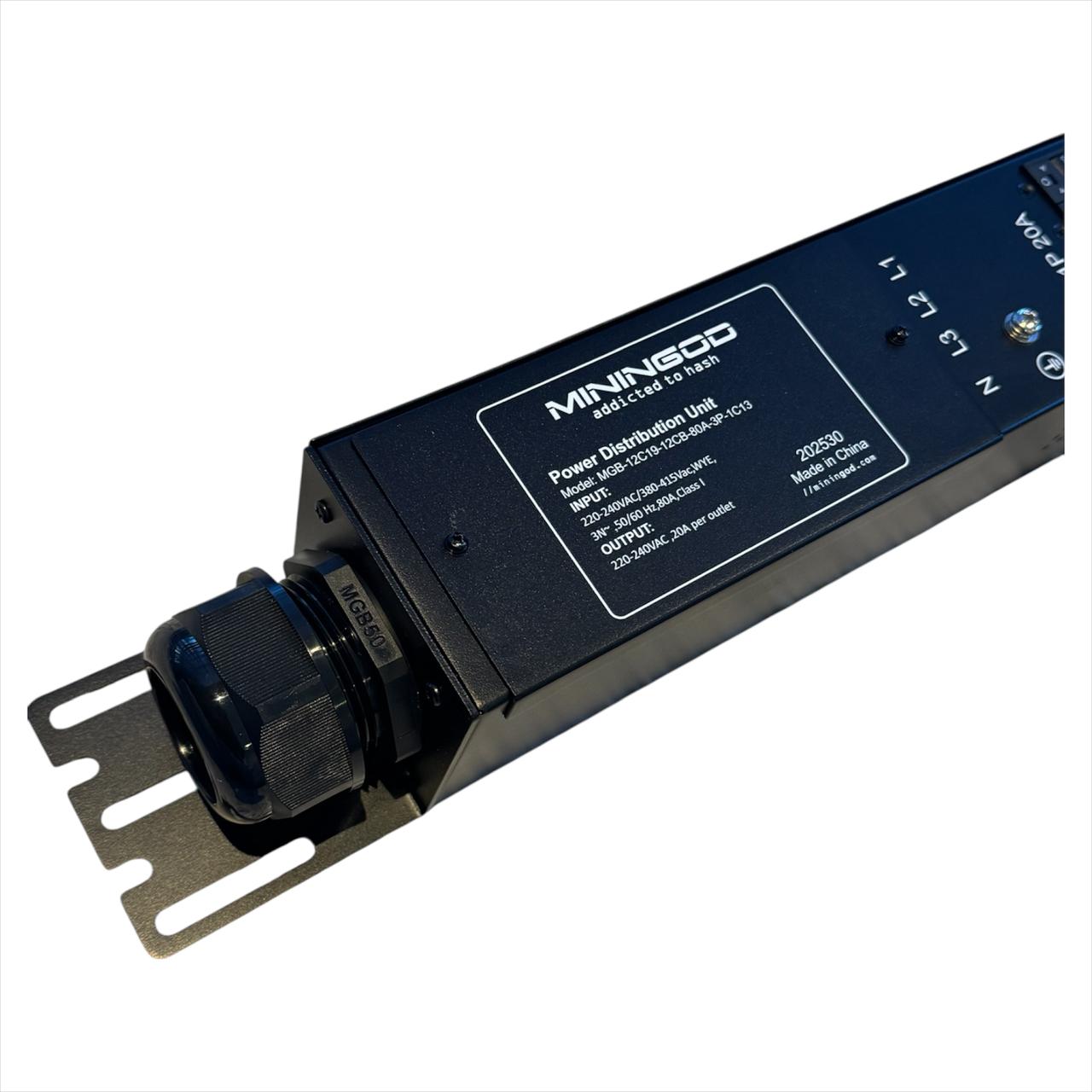

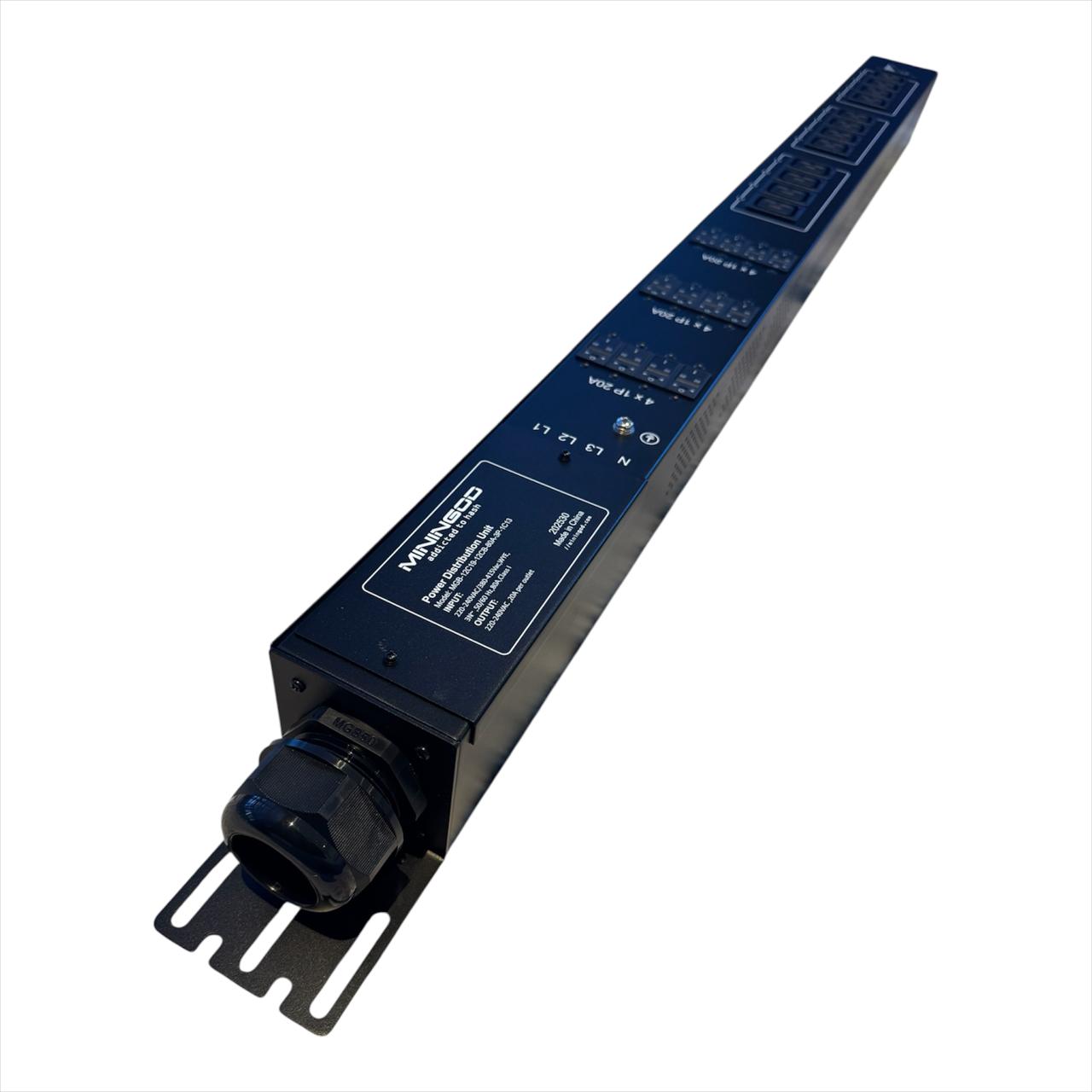

Miningod Power Distribution Unit - C19 - 12Way - 80Amp
Miningod 12 way C19 80A PDU
Specs
Input Voltage: AC 3Phase 380V - 415V
Input Voltage Margin: + 6% / - 10%
Frequency Required: 50/60 Hz
Input Connectors: 4 Wire Terminal Box
Max Total Electric Current: 80A 3Ph
Power Output Connectors: 12 x IEC 60320 C19 20A

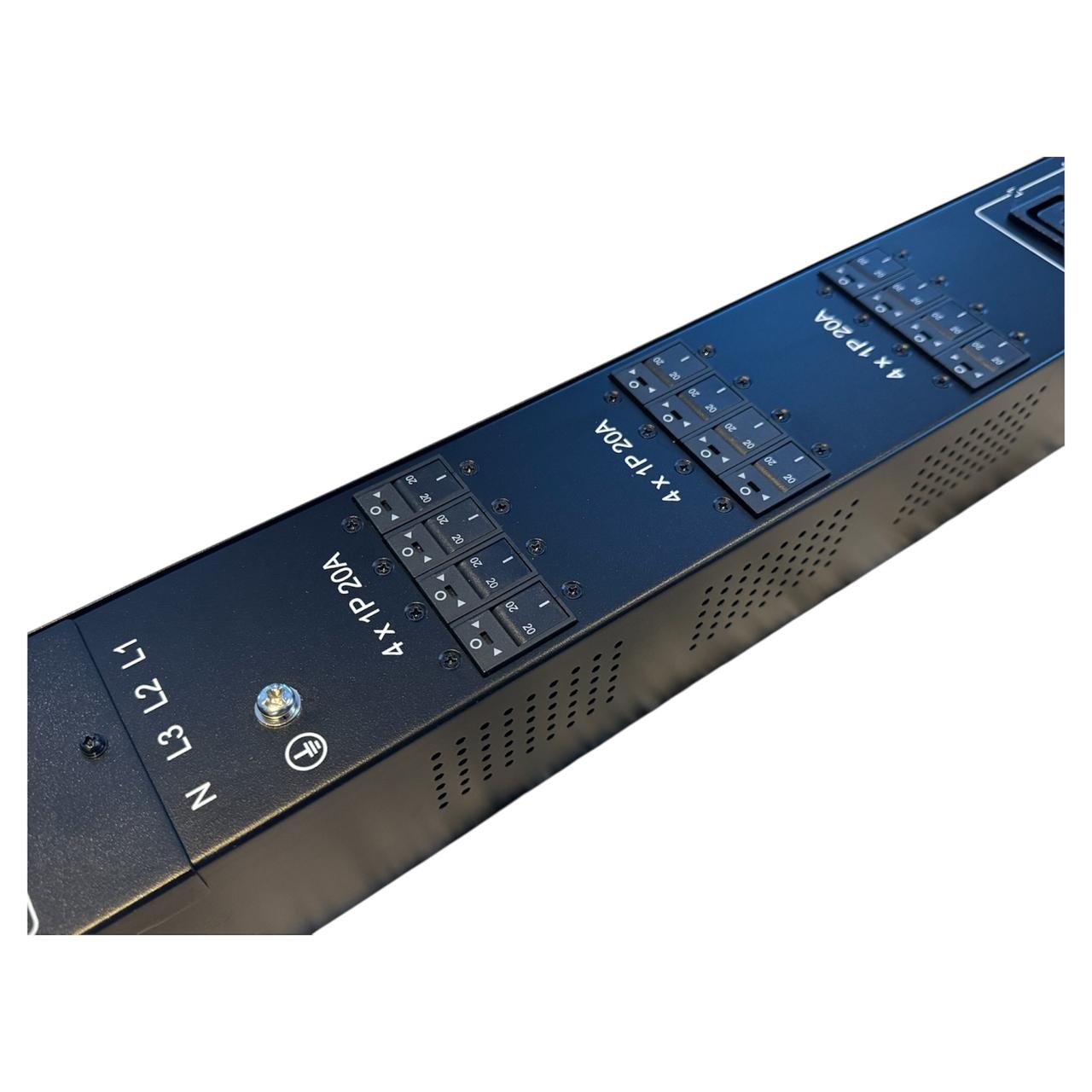

Breaker protection:
- 12x Individual 20A Hydraulic Breaker (C19)
- 1x Individual 10A Hydraulic Breaker (C13) (Network Switch)
Output Voltage: AC 200-240 V + 6% / - 10%
Compliant Standards: ETL Tested
Input:
- 380 - 420 VAC, three phase, 80 Amp, 50/60Hz

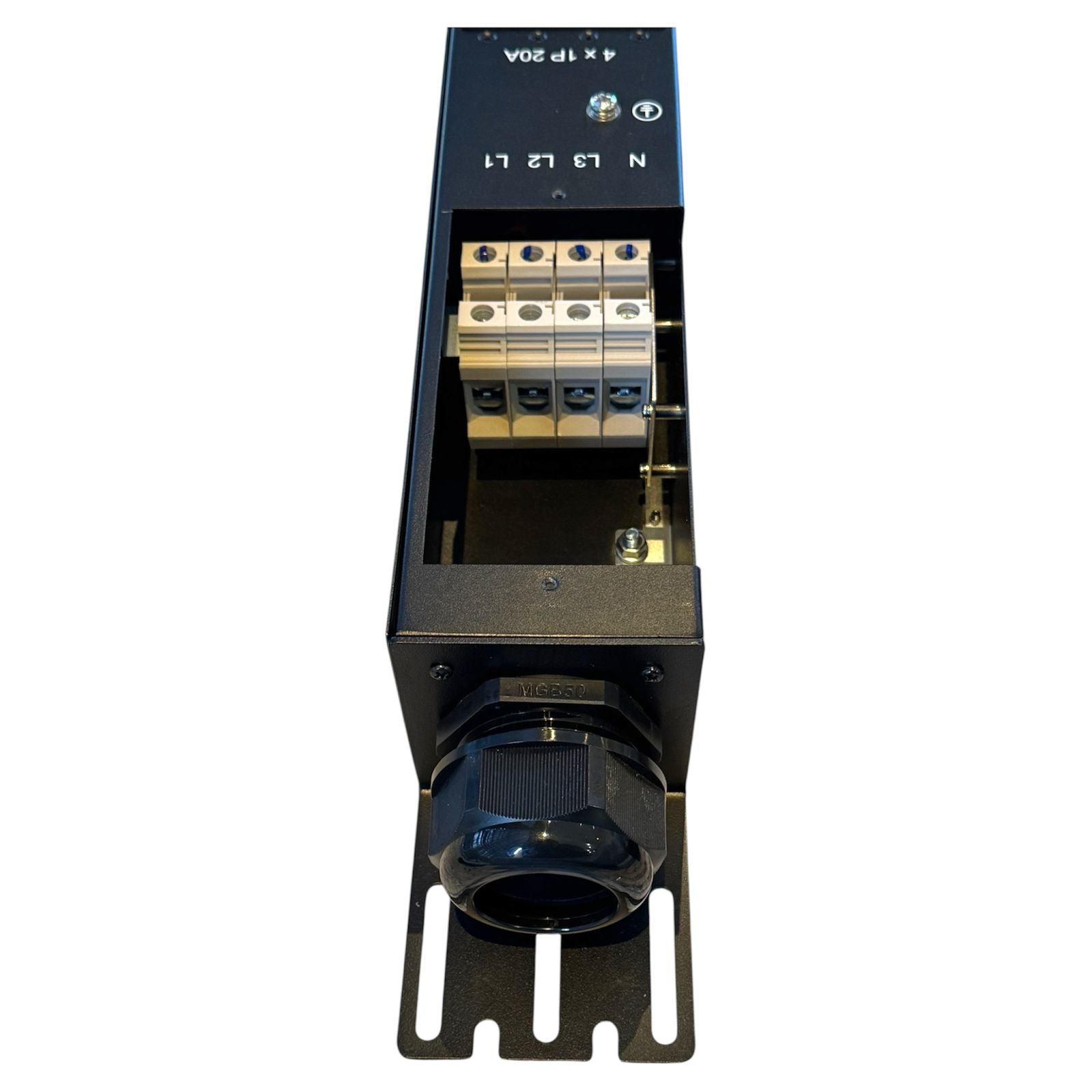

- Input Terminals: L1, L2, L3, N
Output:
- 200 - 240 VAC, Single Phase, 20 amp per C19 outlet.
- 200 - 240 VAC, Single Phase, 20 amp per C13 outlet.

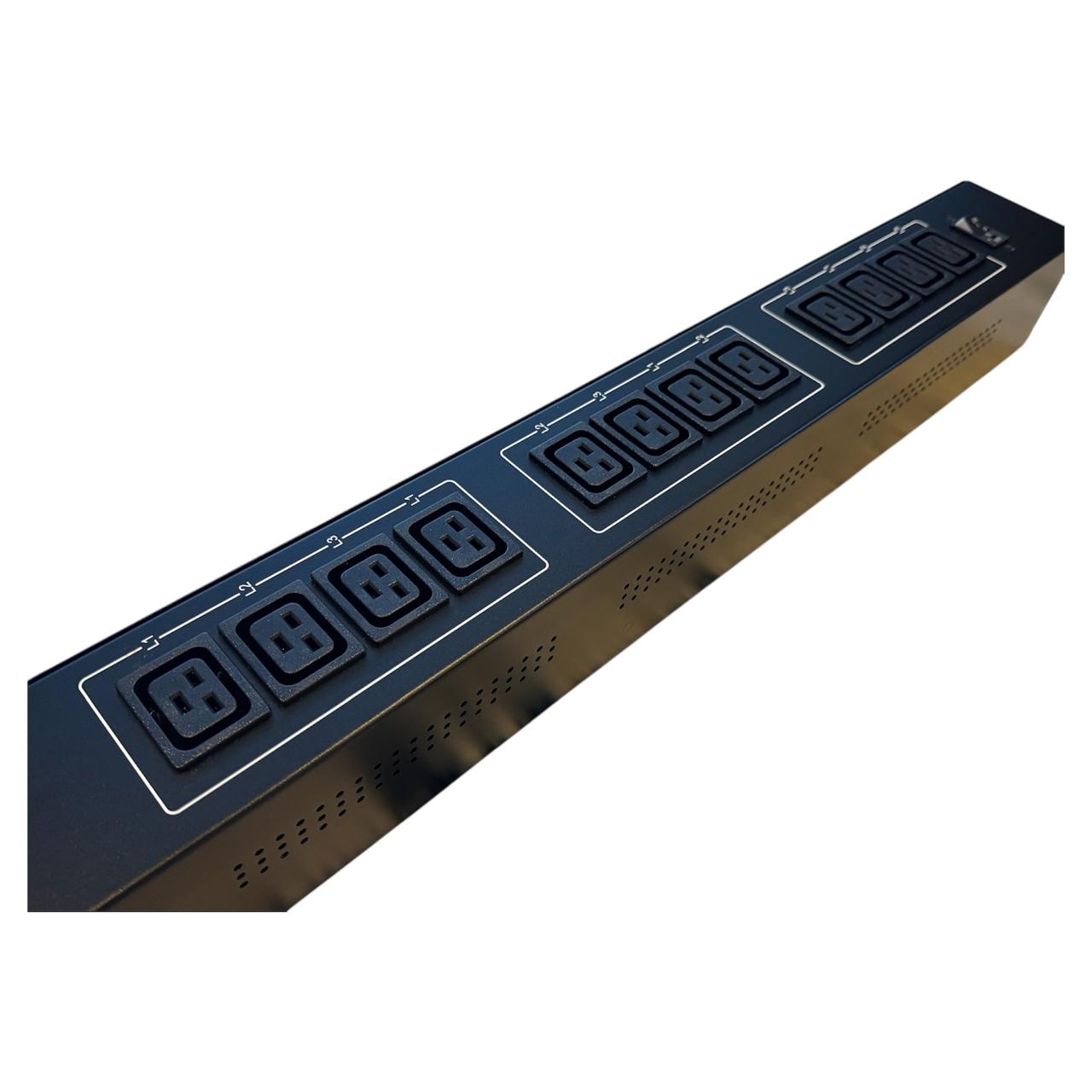

- 12x C19 Outlets

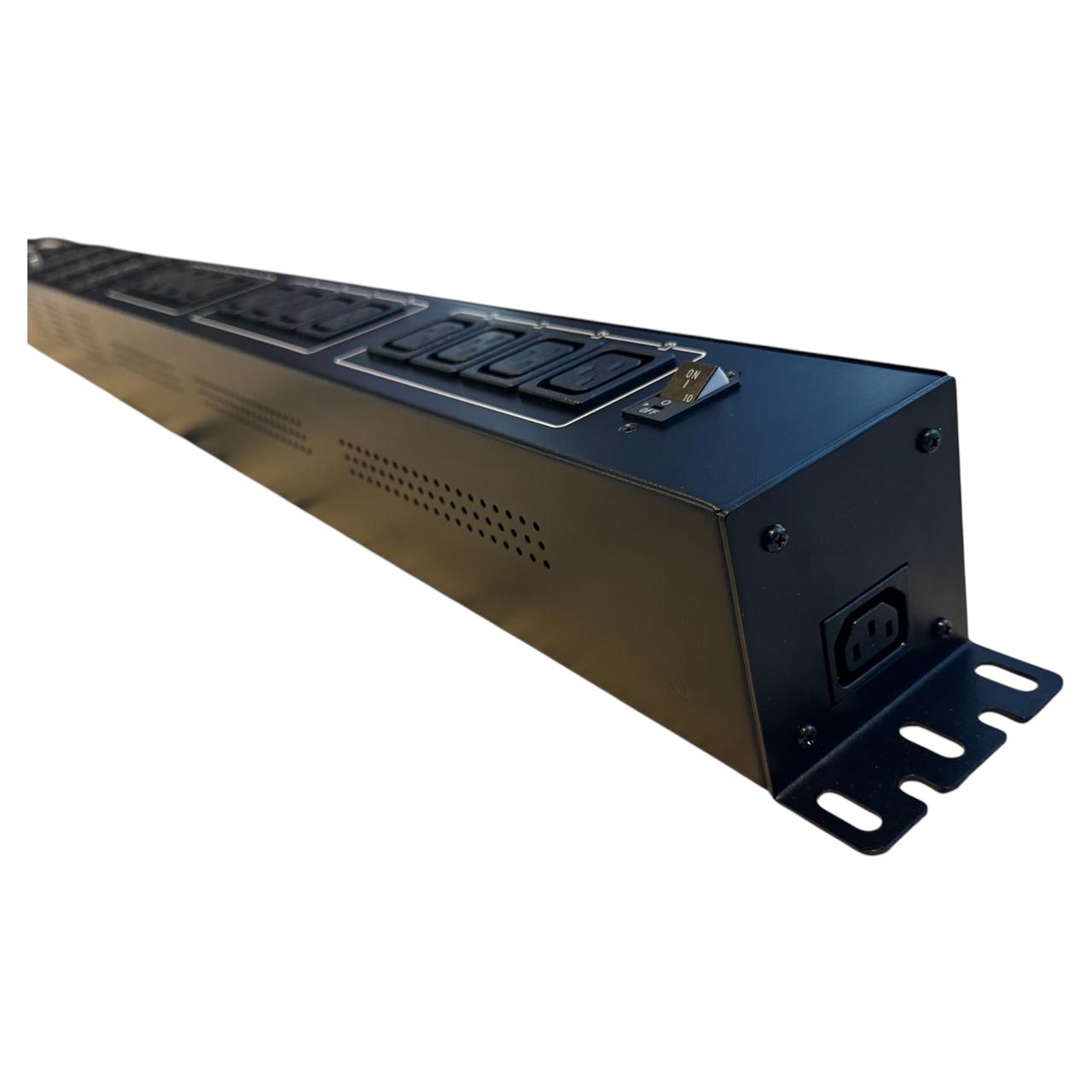

- 1x C13 Outlet (Network Switch)
