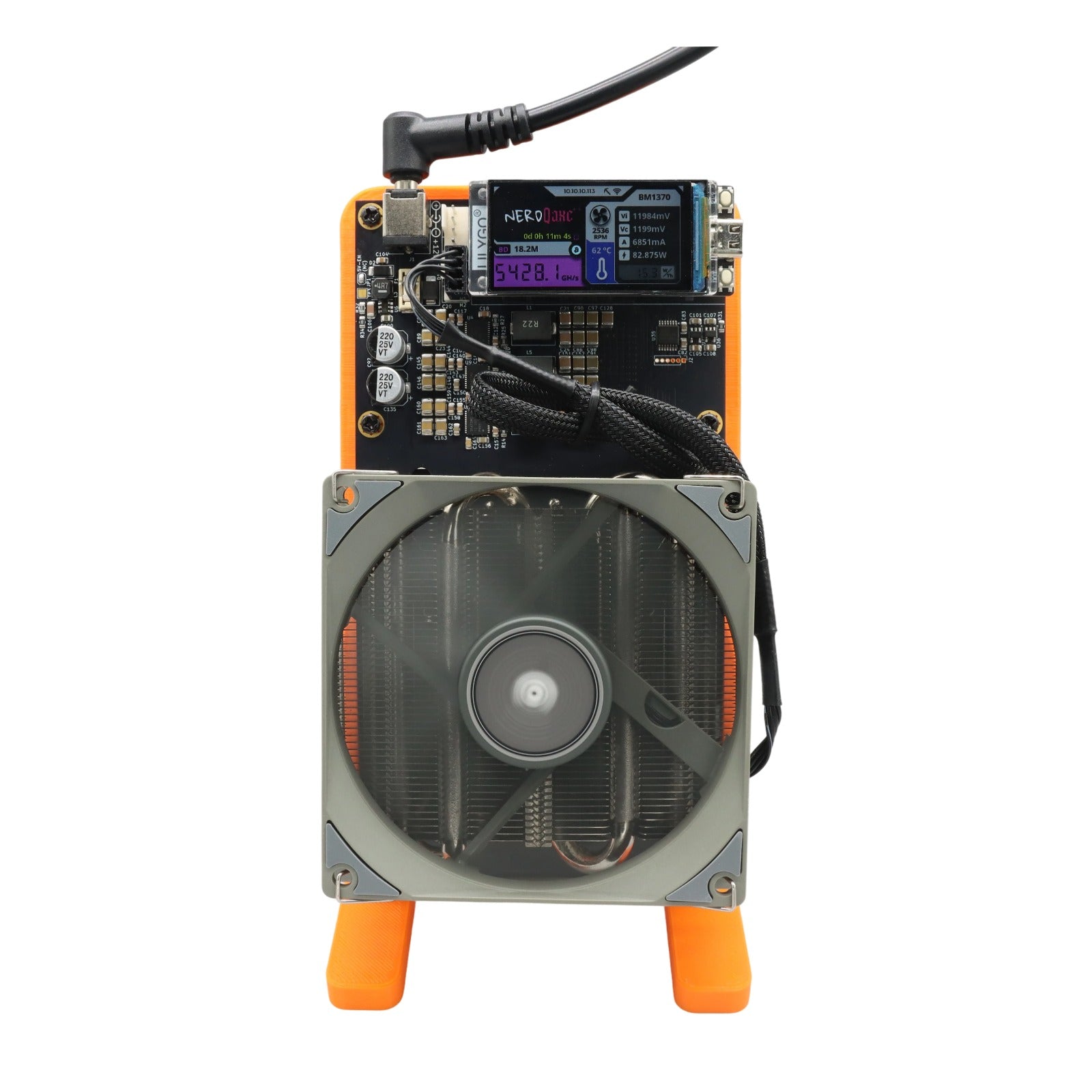

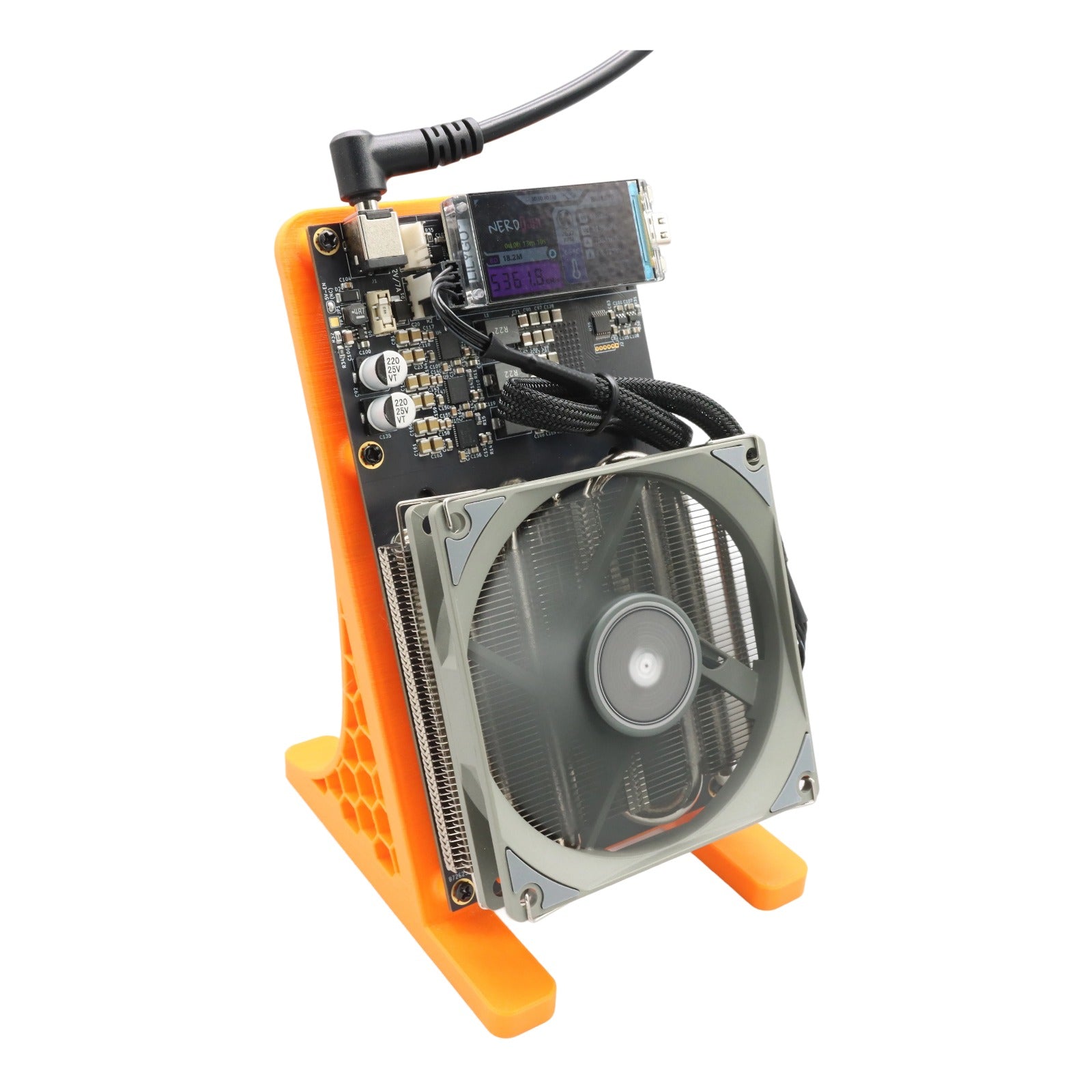

Nerdminer NerdQaxe++ - BM1370 - 4.8TH
NerdQaxe++ – 4.8 TH/s Home Bitcoin ASIC Miner (SHA-256)
The NerdQaxe++ is a compact, open-source Bitcoin ASIC miner designed for home and small-scale setups. It delivers a hashrate of 4.8 TH/s on the SHA-256 algorithm while drawing about 72–76 W at the wall (≈ 0.016 J/GH or 16 J/TH), and runs quietly at approximately 40 dB. Built-in Wi-Fi (2.4 GHz) and a local web dashboard make setup and monitoring simple.
Key Features
- Hashrate: 4.8 TH/s (±5%) on SHA-256
- Low Power: ~72–76 W typical; high efficiency ≈ 16 J/TH
- ASICs: 4 × Bitmain BM1370 chips (S21-generation)
- Quiet Operation: ~40 dB, suitable for home/office
- Connectivity: Wi-Fi 2.4 GHz with built-in web GUI
- On-device Display: 1.9″ LCD shows hashrate, temps, network status
- Cooling: Thermalright AXP90 X36 low-profile cooler (air cooled)
- Open-Source: AxeOS-based firmware for easy updates and tuning
Technical Specifications
| Algorithm | SHA-256 (Bitcoin) |
| Hashrate | 4.8 TH/s ±5% |
| Power Consumption | 72–76 W (typical) |
| Energy Efficiency | ≈ 0.016 J/GH (≈ 16 J/TH) |
| ASIC Chips | 4 × Bitmain BM1370 |
| Noise Level | ~40 dB |
| Cooling | Thermalright AXP90 X36, 1 × fan (air cooled) |
| Interface | Wi-Fi (2.4 GHz), local web dashboard |
| Operating Range | 5 – 40 °C; 10 – 65 % RH |
| Dimensions | ≈ 90 × 120 × 40 mm (W×H×D) |
| Weight | ≈ 0.4 kg (unit only; bundle dependent) |
| Power Input | 12 V DC (AC adapter included; 100–240 V AC, 50/60 Hz) |
| Display | 1.9″ LCD with on-device controls |
| Firmware | AxeOS (open-source), web-based configuration |
What’s in the Box
- NerdQaxe++ Miner (4 × BM1370 ASIC)
- 12 V Power Adapter with mains cable
Setup Notes
- Power on and join the miner’s Wi-Fi access point (2.4 GHz) from a phone/PC.
- Open the web UI, enter Wi-Fi credentials and your pool/wallet details.
- Save and reboot; monitor hashrate, temperatures, and logs in the dashboard.
Important
- Actual hashrate, power, and noise can vary with firmware, environment, and settings.
- For best results, provide good ventilation and a stable power source.
