Nerdminer NerdQaxe++ HYDRO - BM1370 - 4.8TH

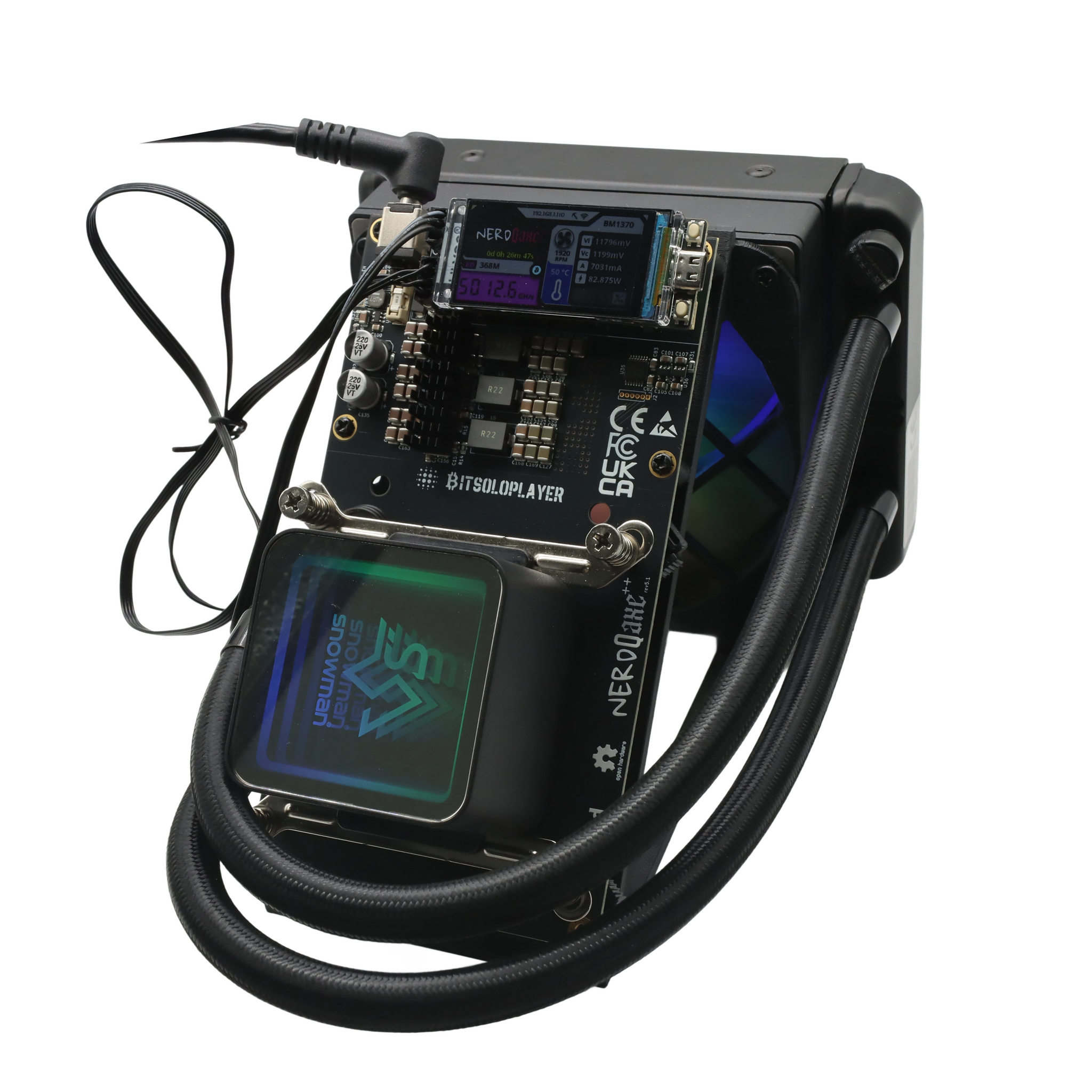

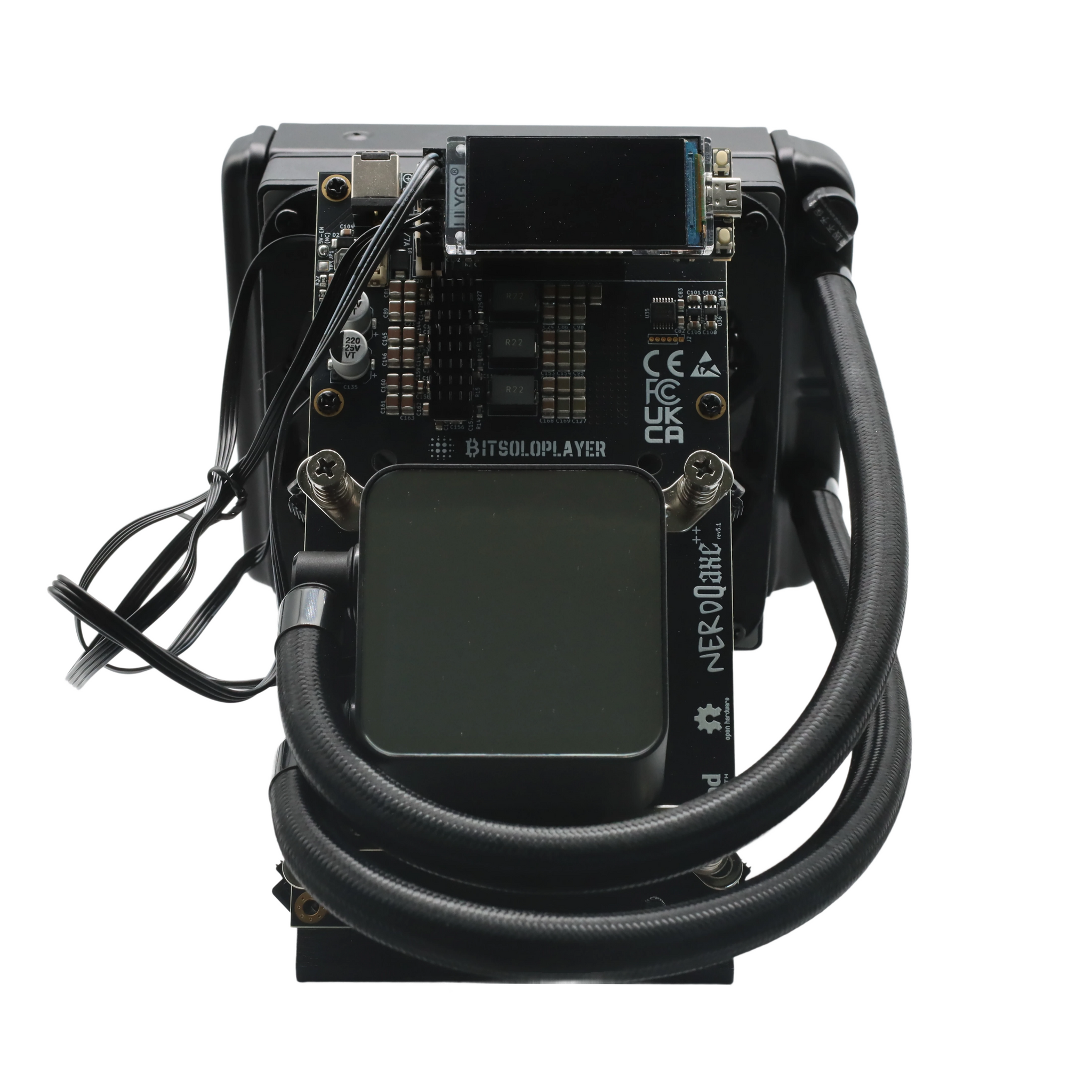

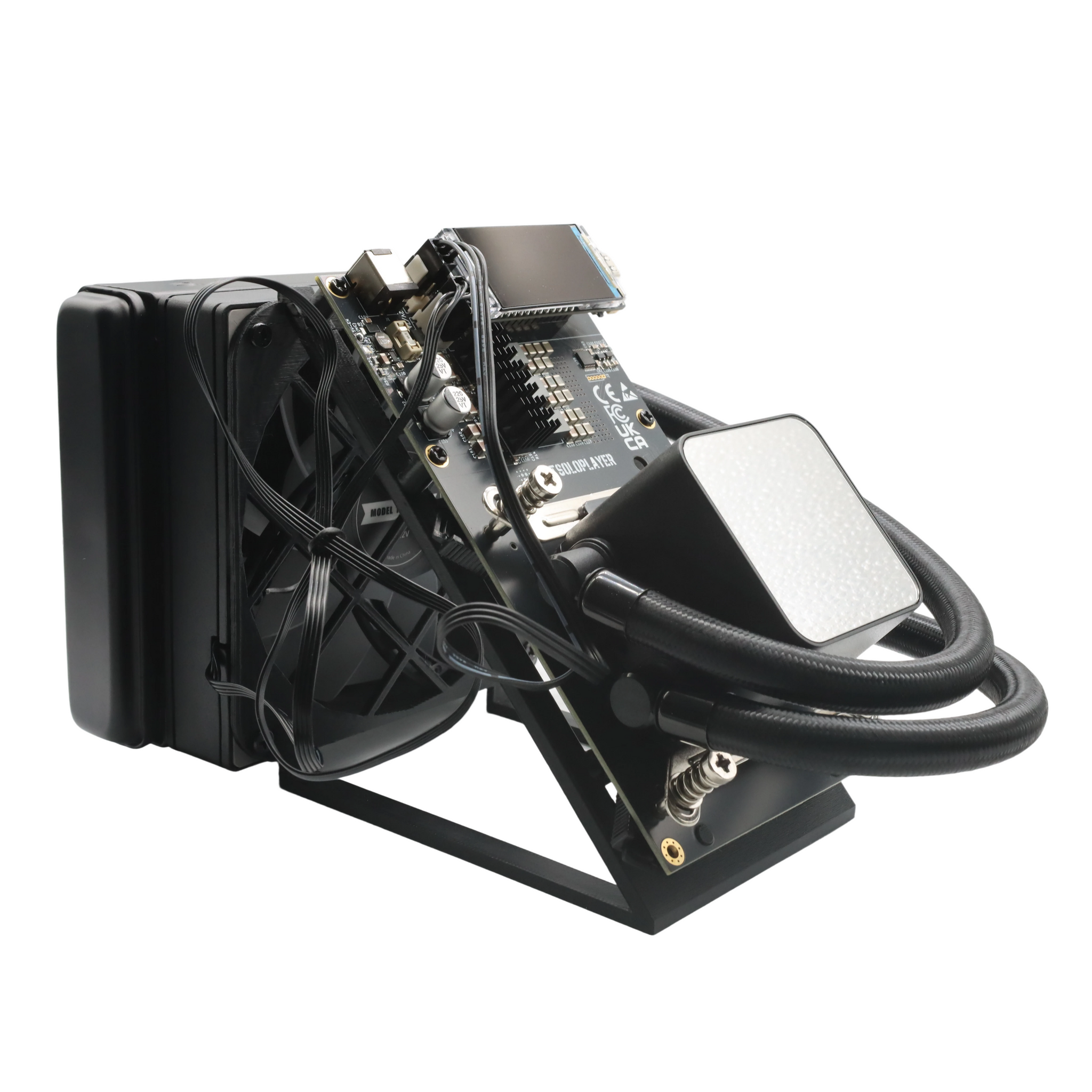

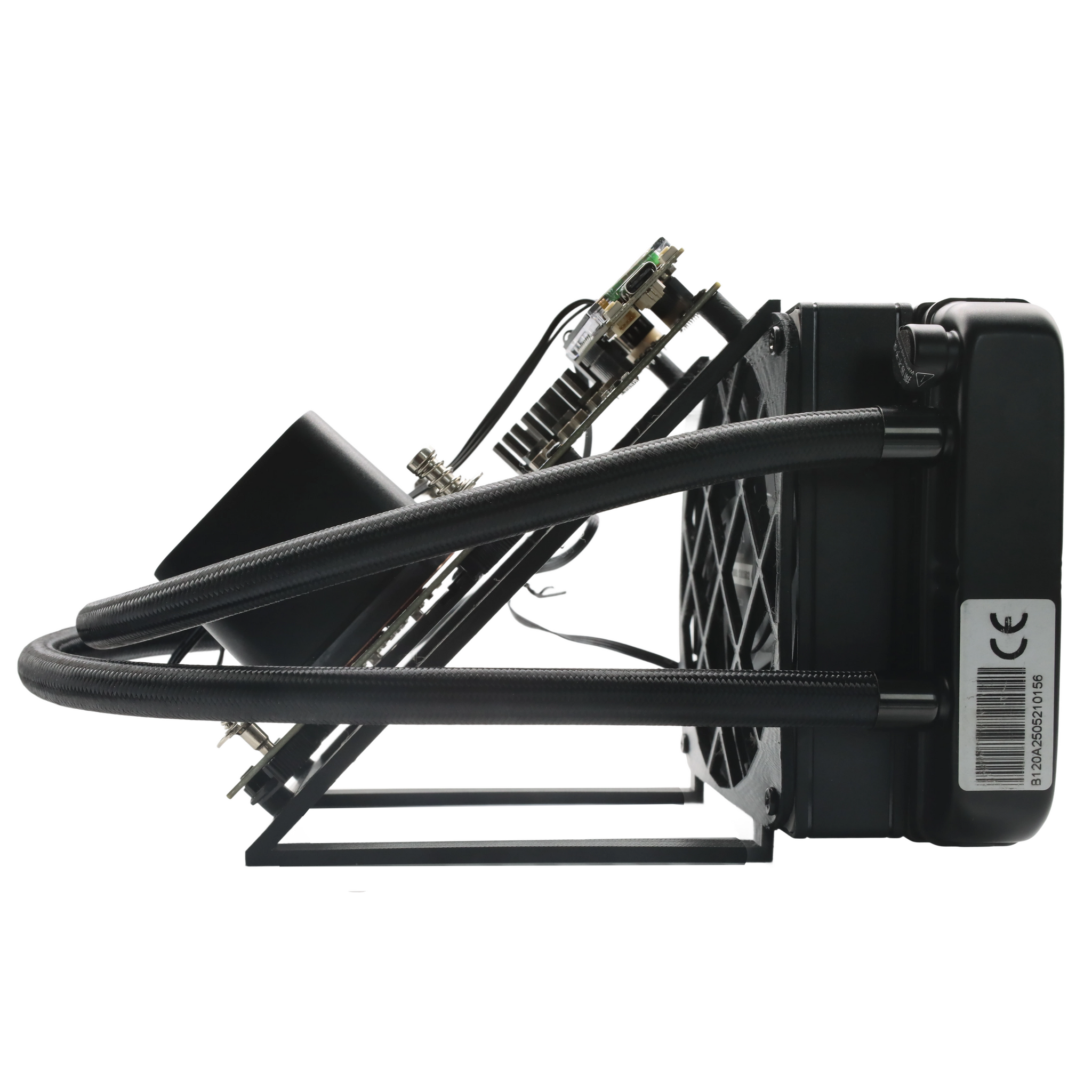

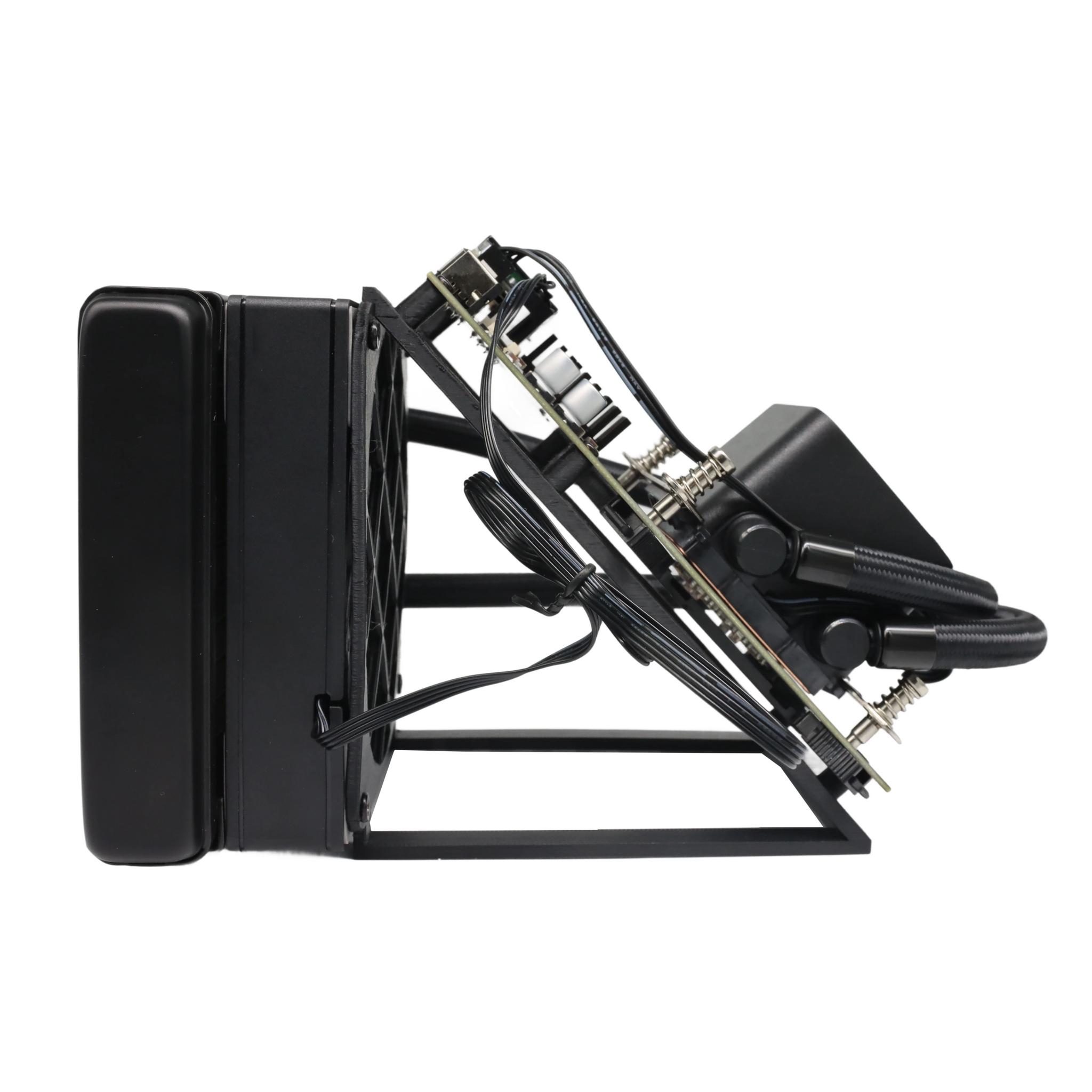

NerdQaxe++ Hydro – 4.8 TH/s Home Bitcoin ASIC Miner (SHA-256)
The NerdQaxe++ Hydro is a compact, water-cooled open-source Bitcoin ASIC miner designed for home and small-scale setups that need quiet, stable thermals. It delivers a hashrate of 4.8 TH/s on the SHA-256 algorithm while drawing about 60–76 W at the wall (≈ 0.012–0.016 J/GH or 12–16 J/TH), and runs very quietly (approx. 30–38 dB) thanks to liquid cooling. Built-in Wi-Fi (2.4 GHz) and a local web dashboard make setup and monitoring simple.
Key Features
- Hashrate: 4.8 TH/s (±5%) on SHA-256
- Low Power: ~60–76 W typical; high efficiency ≈ 12–16 J/TH
- ASICs: 4 × Bitmain BM1370 chips (S21-generation)
- Ultra-Quiet Operation: ~30–38 dB, suitable for home/office
- Connectivity: Wi-Fi 2.4 GHz with built-in web GUI

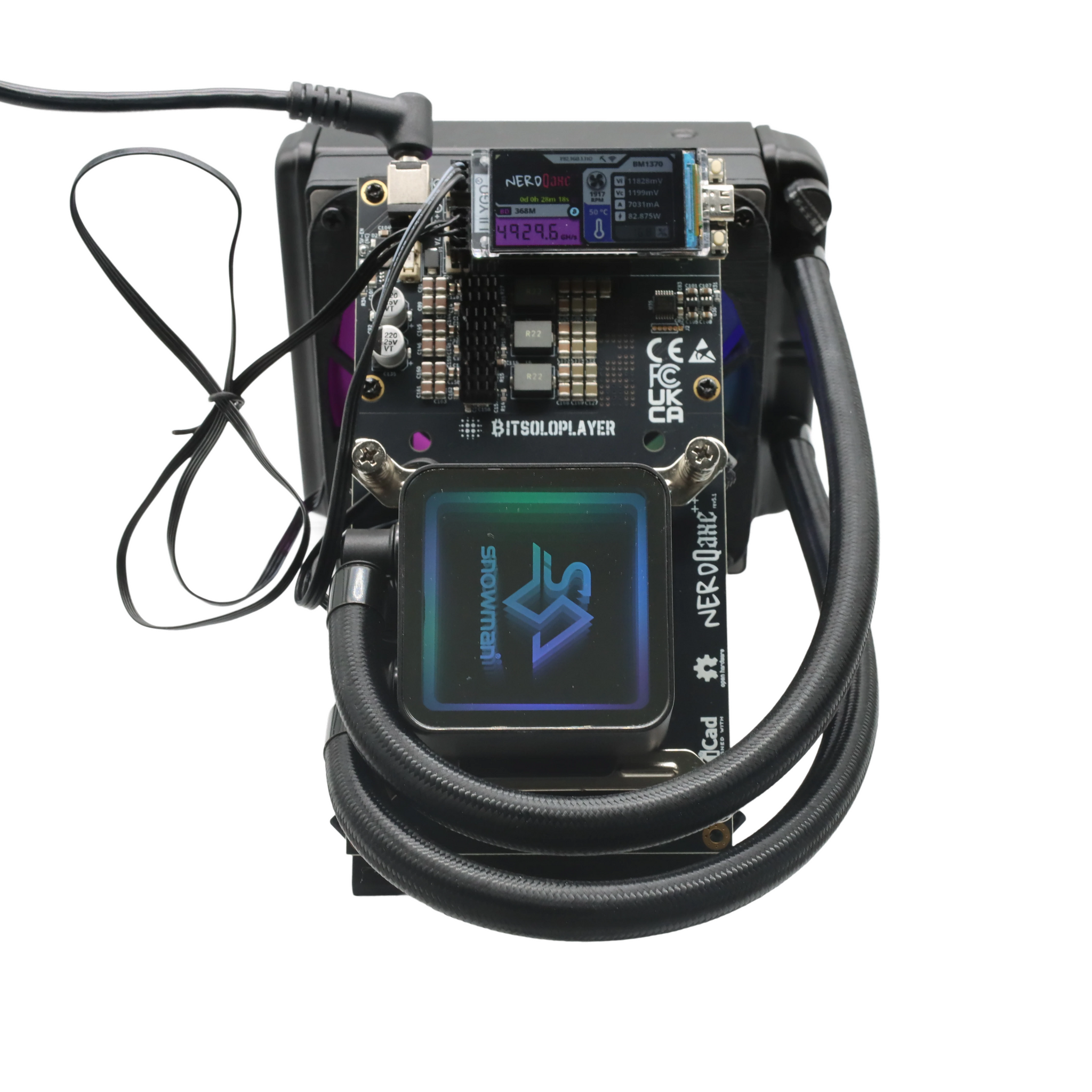

- On-device Display: 1.9″ LCD shows hashrate, temps, network status

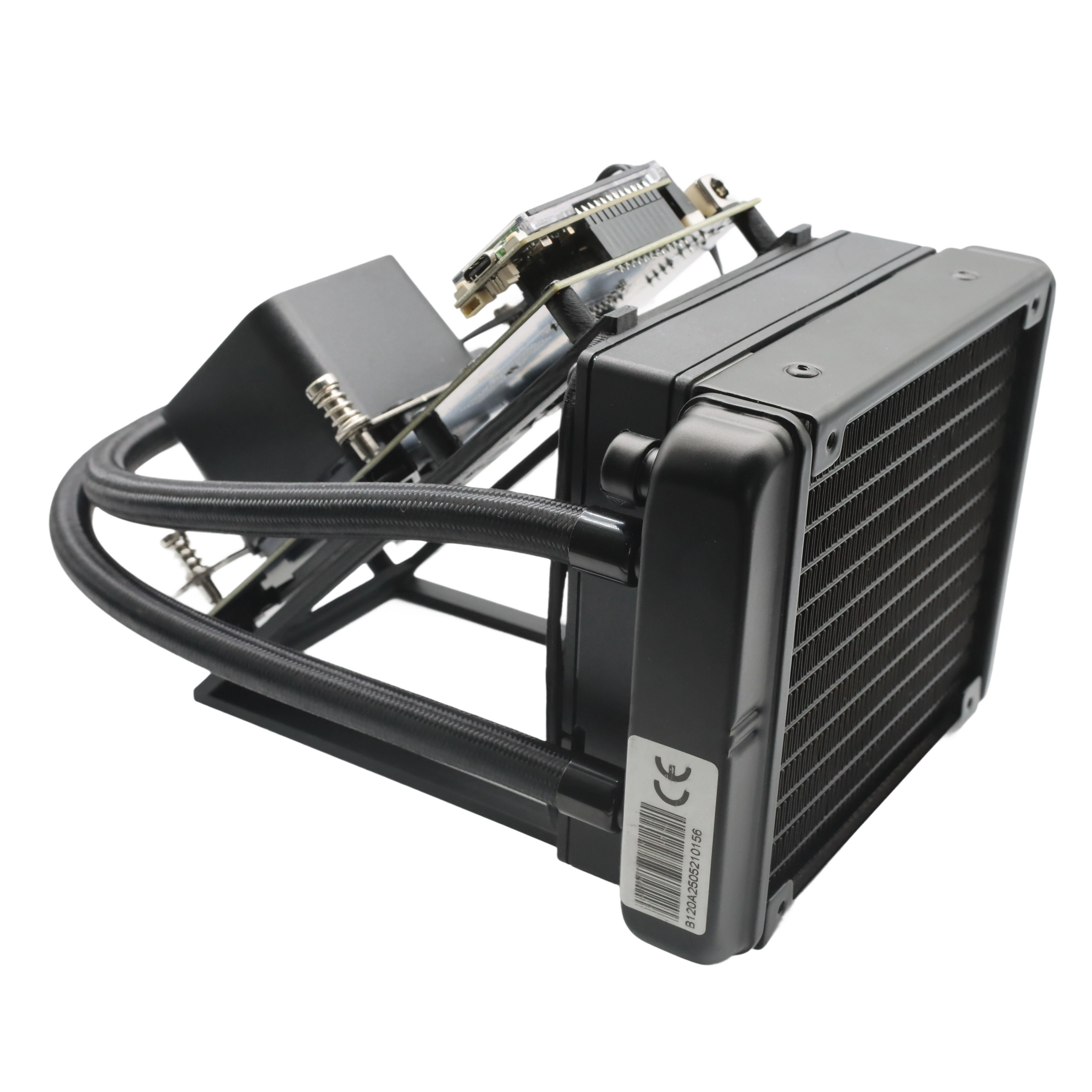

- Cooling: Integrated hydro loop (waterblock + pump + radiator)
- Open-Source: AxeOS-based firmware for easy updates and tuning
Technical Specifications
| Algorithm | SHA-256 (Bitcoin) |
| Hashrate | 4.8 TH/s ±5% |
| Power Consumption | 60–76 W (typical; depends on coolant temp & tuning) |
| Energy Efficiency | ≈ 0.012–0.016 J/GH (12–16 J/TH) |
| ASIC Chips | 4 × Bitmain BM1370 |
| Noise Level | ~30–38 dB |
| Cooling | Hydro / water-cooled loop (pump + waterblock + radiator) |
| Interface | Wi-Fi (2.4 GHz), local web dashboard |
| Operating Range | 5 – 40 °C; 10 – 65 % RH |
| Dimensions | Compact tabletop footprint (kit-dependent) |
| Weight | Bundle dependent |
| Power Input | 12 V DC (AC adapter included; 100–240 V AC, 50/60 Hz) |
| Display | 1.9″ LCD with on-device controls |
| Firmware | AxeOS (open-source), web-based configuration |

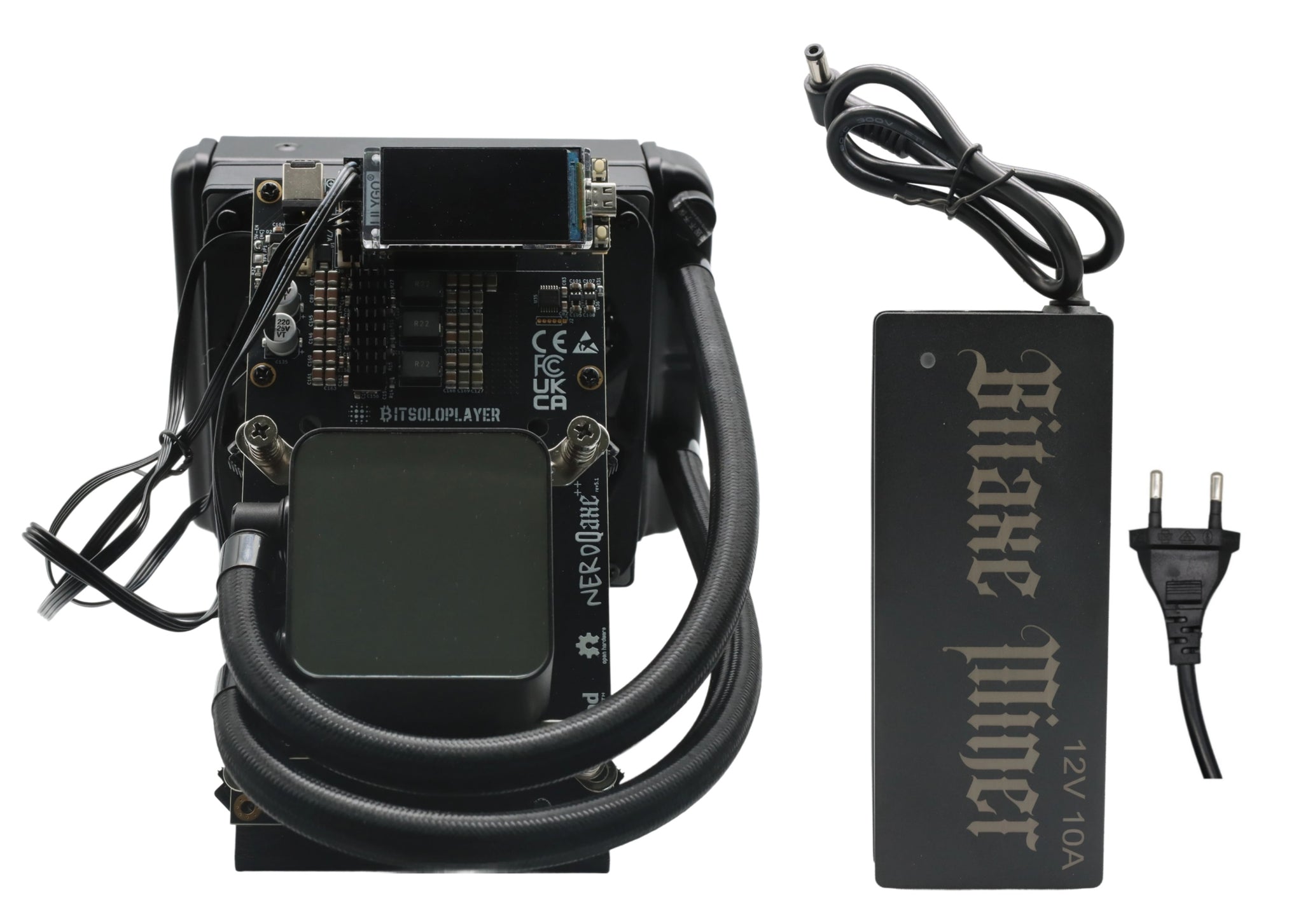

What’s in the Box
- NerdQaxe++ Hydro Miner (4 × BM1370 ASIC)
- 12 V Power Adapter with mains cable
- Hydro cooling kit (pump / waterblock / radiator / tubing)
Setup Notes
- Power on and join the miner’s Wi-Fi access point (2.4 GHz) from a phone/PC.
- Open the web UI, enter Wi-Fi credentials and your pool/wallet details.
- Save and reboot; monitor hashrate, temperatures, and logs in the dashboard.
Important
- Actual hashrate, power, and noise vary with firmware, tuning, coolant temperature, and environment.
- Ensure a leak-free loop and that the pump is running.
- Stable temperatures improve efficiency and longevity.
