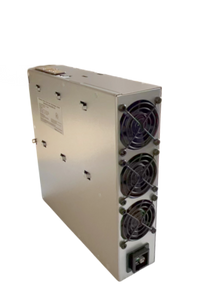

Antminer APW171215a Power Supply
Note:
This power supply is version a.
Compatible with:
Antminer S21
Antminer S19j XP
Antminer KS5
Antminer KS5Pro
Antminer AL1
Antminer AL1Pro
Antminer L9
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly from Bitmain's official website: Firmware Download
| Product Spec | ||
|
OUT1
|
DC Voltage | 12V-15V |
| Rated Current(220V input) |
267A |
|
| Ripple & Noise | <1% | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <14S | |
| Short Circuit Protection | >10mS | |
|
OUT2
|
DC Voltage | 12.3V |
| Rated Current(220V input) | 18A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V-12.4V | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <10S | |
| Short Circuit Protection | >10mS | |
| Input | Voltage Range | 220-277V AC |
| Frequency Range | 50/60Hz | |
| Power Factor | >0.99(full load) | |
| Leakage Current | <4mA（220V 50Hz） | |
| Protection | Input low-voltage protection value | 185-195V AC |
| Output Short Circuit | Yes | |
| Overheat Protection | Yes | |
| Over-current Output | 280A-402A（protection value varies under different voltage） | |
| Environment | Operating Temperature | -20-40℃ |
| Operating Humidity | 20%-90%RH（non--condensing） | |
| Altitude | <2000m | |
| Structure | Dimensions | 254.6*251.6*63mm |
| Net Weight | 3.9Kg | |
| Cooling System | Forced‐air cooling | |
| Noise | 45dBA | |
