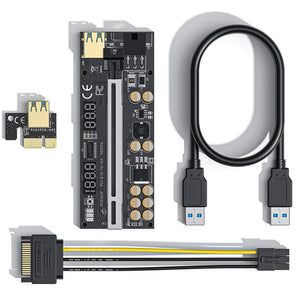

PCIe Riser Card - VER016 PRO - 12V - 6PIN, 10x Gold Solid Caps, 3x LED, 2x LCD Temperature + Voltage Display

Premium PCIe USB Riser Card VERSION 016 PRO Temperature + Voltage Display

POWER INPUT:

1 x 6Pin PCIE Power Connectors

EZ DEBUG LED LIGHTS:

3x  RGB LEDs

Temperature Display:

4 Digit, 7-Segment LCD Displays temperature in Celsius/Fahrenheit

3 Digit, 7-Segment LCD Displays voltage in real time

FEATURES

• 10x GOLD FP Solid Capacitors
• Gold Plated USB Headers
•

• Metal PCIE slot retention bracket
• Butterfly GPU retention clip
• 2x SS34 High Power Schottky Rectifier
• Maximum repetitive peak reverse voltage (VRRM): 40V
• Maximum RMS voltage (VRMS): 28V

• Maximum DC blocking voltage (VDC): 40V

• Maximum average forward rectified current(IFAV): 3.0A

• Peak forward surge current (IFSM): 100A

• Non-repetitive avalanche energy(EAS): 20mJ

• Voltage rate of change (dV/dt): 10,000V/μs
• Operating junction temperature range(Tj): -55C to +150C


• 1812 2A PTC Re-settable Polly Fuse (100A max rated)

• 150 μH Shielded power inductor

• 270μF 16VDC Capacitors
• LM1084 5V LDO Voltage Regulator

• PCE2PCE - NO9 - PCIE1x to USB adapter
• USB Cable Length: approx. 60cm
• SATA 15pin Male to 6pin power cable
• Molex 4pin to 6pin power cable
• Compatible with 1x, 4x, 8x, 16x PCI-E slot on the motherboard
• No driver needed
• 12V input voltage
