Split Hydro Miner Cooling Kit - 9Way - 70Kw
Hydro Cooling Kit MG-9W70
High-Efficiency Home Hydro Cooling with EC Fan and Water Curtain Technology
The MG-9W70 is a purpose-built hydro cooling solution designed for home and small-scale mining deployments. While most residential hydro cooling systems rely on fixed-speed fans and basic radiator setups, the MG-9W70 stands out by incorporating both EC automatic fan control and an optional water curtain cooling stage—two features rarely found in competing systems.
This intelligent dual-stage cooling approach ensures quiet operation in cooler conditions and powerful heat rejection when temperatures rise, maintaining consistent thermal performance even in high ambient climates.
Built to support up to 9 Antminer Hydro miners, the MG-9W70 offers industrial-grade cooling in a compact footprint optimized for residential and garage installations. Its closed-loop deionized water system enhances long-term reliability by preventing scale formation and corrosion inside the cooling circuit.
⸻
Technical Specifications and Features
• Cooling Capacity: Supports up to 9 Antminer Hydro miners
• Cooling System Type: Closed-loop deionized water circulation
EC Fan System:
- Automatically adjusts RPM based on water temperature
- Built in fan controller for setting auto parameters
- Enables quiet operation during low ambient conditions
- Power Input: 3-Phase 380–415V, 50/60Hz
- Max Power Consumption: ~1.8 kWh
- Maximum Airflow: ~20,000 CFM
- Fan Diameter: 970 mm
Water Curtain Cooling (Optional Use):
- Adds an evaporative cooling stage for additional heat dissipation
- Connects to standard water supply
- Auto Regulated Reservoir: Float valve maintains water level automatically
Design Format: Compact, space-efficient layout suitable for residential environments
Noise Profile: Optimized for home or garage installations through EC fan modulation
Built for Miners Who Need Real Performance — Without Industrial Noise or Bulk
The MG-9W70 is engineered for users who want more than just a fan and radiator. With temperature-adaptive EC fan control and optional water curtain cooling, it delivers a level of efficiency, noise reduction, and hot-weather resilience that standard cooling cabinets cannot match.

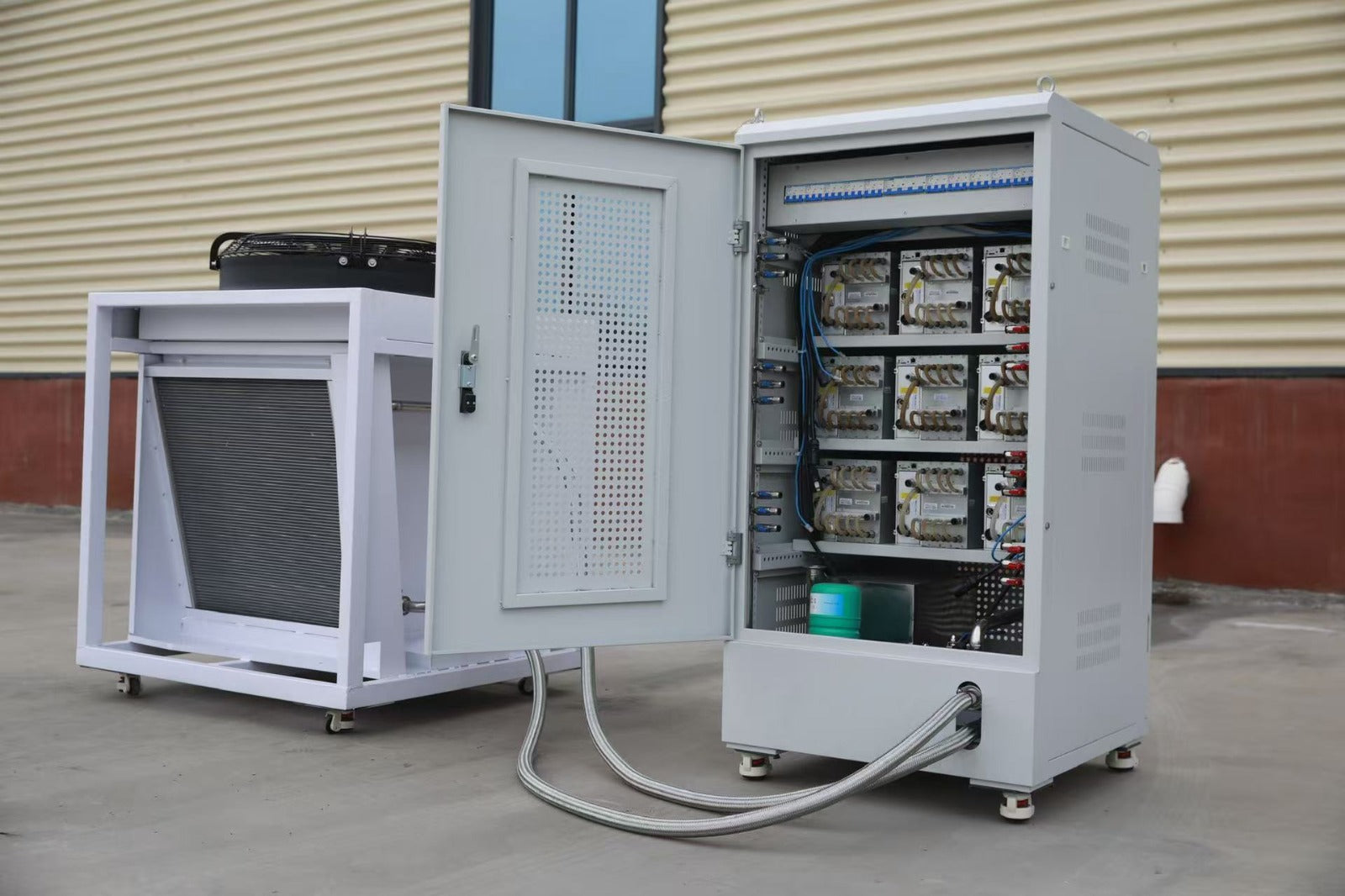

Technical Specifications

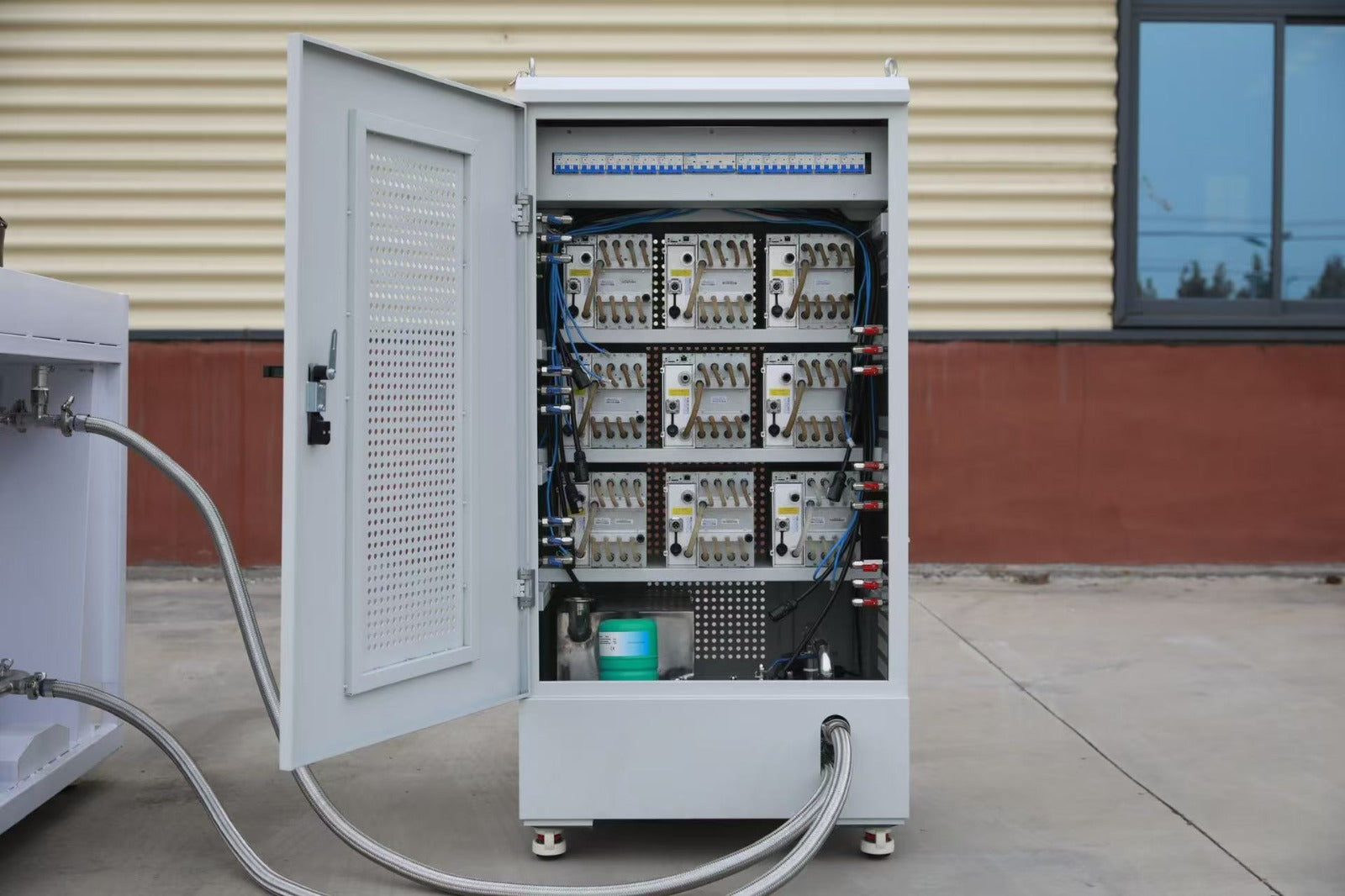

| MG-9W70 Cabinet Specifications | |
|---|---|
| Model | MG-9W70 |
| Heat Dissipation Capacity | 70 kW |
| Miner Support Capacity | Up to 9 × Antminer S19 / S21 Hydro |
| Dimensions (Cabinet) | 800 mm (L) × 790 mm (W) × 1600 mm (H) |
| Weight (Cabinet) | 155 kg |
| Cooling Fluid | Pure water / Soft water with antifreeze + corrosion inhibitor |
| Max Inlet/Outlet Temperature | 40°C (Inlet) / 50°C (Outlet) |
| Cooling Pairing | Compatible with external dry cooler |
| Required Flow Rate | 4 m³/h |
| Input Voltage | 3-Phase, 380–415V, 50/60Hz |
| Output Voltage | 3-Phase, 380–415V, 50/60Hz |
| Ambient Operating Range | -25°C to +45°C |
| Design Pressure Rating | 0.3 MPa |

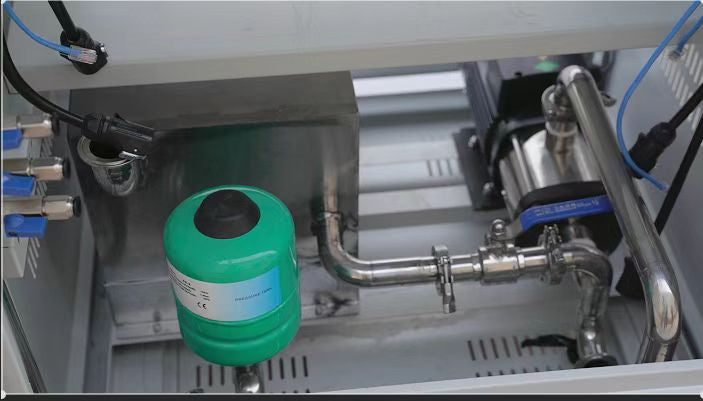

| Included Components | Water pump, stainless fittings, EPDM hose set, quick-connect couplings |
| MG-9W70 Cooling Tower Specifications | |
|---|---|
| Dimensions (Cooler) | 1100 mm (L) × 1100 mm (W) × 1400 mm (H) |
| Weight (Cooler) | 170 kg |
| Cooling Capacity | 70 kW |
| Circulation Modes | Single-loop / Dual-loop compatible |
| Input Voltage | 3-Phase, 380–415V, 50/60Hz |
| Output Voltage | 3-Phase, 380–415V, 50/60Hz |
| Cooling Medium | Loop Requires ~50L Distilled/De-ionized water / Treated soft water with antifreeze + corrosion inhibitor |
